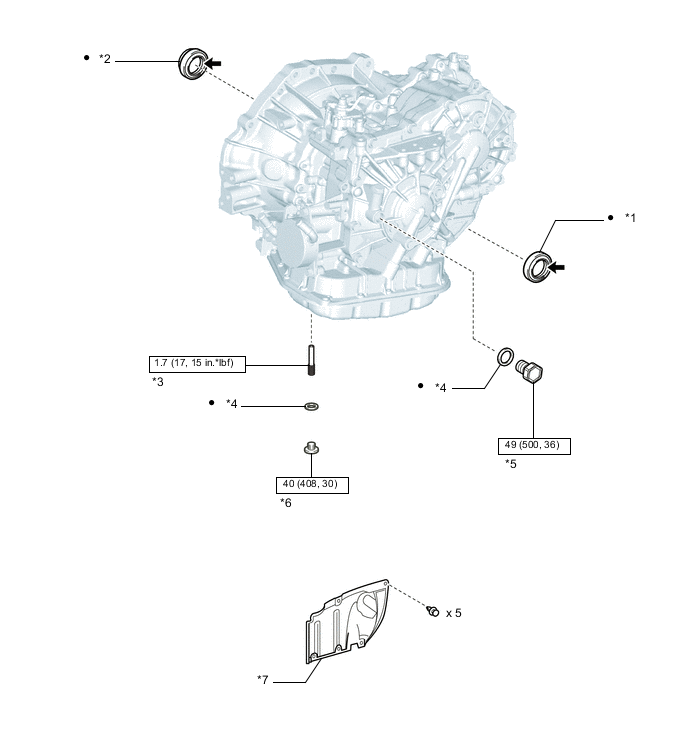

FRONT DIFFERENTIAL OIL SEAL COMPONENTS
ILLUSTRATION
| *1 | FRONT DRIVE SHAFT OIL SEAL LH | *2 | FRONT DRIVE SHAFT OIL SEAL RH |
| *3 | NO. 1 TRANSMISSION OIL FILLER TUBE | *4 | GASKET |
| *5 | REFILL PLUG | *6 | OVERFLOW PLUG |
| *7 | REAR ENGINE UNDER COVER LH | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease | - | - |
