OIL PAN REMOVAL

PROCEDURE


  1. REMOVE NO. 1 ENGINE UNDER COVER (for 1ZR-FAE)


  2. REMOVE NO. 1 ENGINE UNDER COVER (for 8NR-FTS)

    Click here

  3. REMOVE REAR ENGINE UNDER COVER LH (for 1ZR-FAE)

    Click here

  4. REMOVE REAR ENGINE UNDER COVER LH (for 8NR-FTS)

    Click here

  5. REMOVE TRANSAXLE OIL (CVT) PAN SUB-ASSEMBLY


    1. B00451O

      Remove the refill plug and gasket from the rear transaxle case.

    2. B0044N1

      Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle oil (CVT) pan sub-assembly.

    3. B0042CYC01
      *1 No. 1 Transmission Oil Filler Tube

      Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the transaxle oil (CVT) pan sub-assembly, and drain the fluid.

      Tech Tips

      Removing the No. 1 transmission oil filler tube will drain all of the fluid in the transaxle oil (CVT) pan sub-assembly.

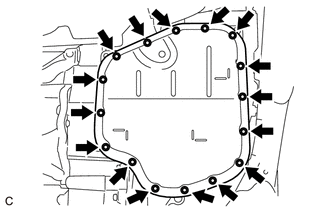

    4. B0044ZW

      Remove the 16 bolts and transaxle oil (CVT) pan sub-assembly from the transaxle case.

      Note

      Some fluid will remain in the transaxle oil (CVT) pan sub-assembly. Remove all the bolts, and carefully remove the transaxle oil (CVT) pan sub-assembly.

    5. Remove the transaxle oil pan (CVT) gasket.

    6. Temporarily install the gasket and refill plug to the rear transaxle case.

      Tech Tips

      Reuse the old gasket as the refill plug will be removed again to adjust the fluid level.

  6. REMOVE OIL CLEANER (CVT) MAGNET


    1. B0044XTC01
      *1 Oil Cleaner (CVT) Magnet

      Remove the 3 oil cleaner (CVT) magnets from the transaxle oil (CVT) pan sub-assembly.

    2. Clean off any metal particles adhered to the 3 oil cleaner (CVT) magnets.

    3. Clean the transaxle oil (CVT) pan sub-assembly and remove any metal particles, sludge, etc.
