TRANSMISSION CONTROL CABLE REMOVAL

PROCEDURE


  1. REMOVE REAR CONSOLE BOX ASSEMBLY

    Click here

  2. REMOVE NO. 2 CYLINDER HEAD COVER

    Click here

  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

    Click here

  4. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Click here

  5. REMOVE BATTERY

    Click here

  6. REMOVE BATTERY CARRIER ASSEMBLY

    Click here

  7. REMOVE FRONT CENTER FLOOR BRACE SUB-ASSEMBLY

    Click here

  8. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

    Click here

  9. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

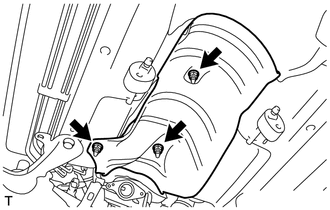

    1. A012IBV

      Remove the 3 nuts and front No. 1 floor heat insulator from the body.

  10. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY


    1. Move the shift lever to N.

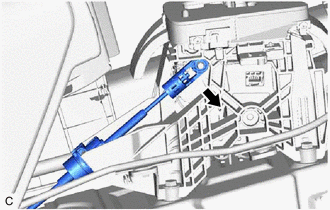

    2. A012FAB

      Disconnect the end of the transmission control cable assembly from the shift lever assembly.

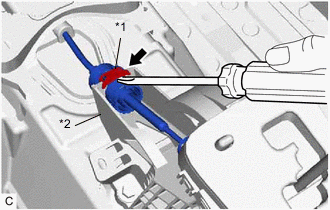

    3. A012JVEC01
      *1 Stopper
      *2 Shift Lever Assembly

      Using a screwdriver, pull out the stopper of the transmission control cable assembly.

      Note

      Do not remove the stopper. If it is removed, reinstall it to its original position.

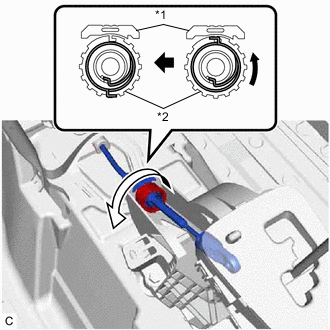

    4. A012FHCC01
      *1 Stopper
      *2 Nut

      Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, disconnect the transmission control cable assembly from the shift lever assembly.

      Note

      Do not rotate the nut excessively as the interior spring may come off and the transmission control cable assembly will not be reusable.

    5. A012F75

      Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.

    6. Remove the clip and separate the transmission control cable assembly from the No. 1 transmission control cable bracket.

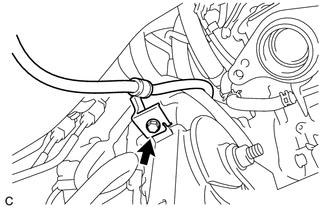

    7. A012I1J

      Remove the bolt and disconnect the transmission control cable assembly from the rear engine mounting insulator.

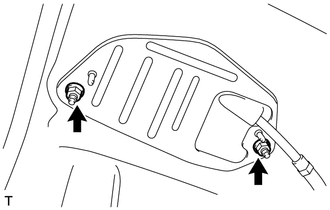

    8. A012IQV

      Remove the 2 nuts and then remove the transmission control cable assembly from the vehicle exterior.
