SHIFT LEVER REASSEMBLY

PROCEDURE


  1. INSTALL SHIFT LOCK ECU (w/o Smart Entry and Start System)

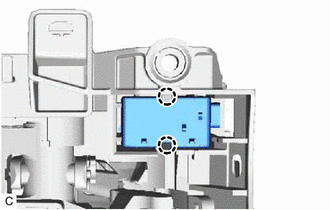

    1. A00Y9GA

      Engage the 2 claws and install the shift lock ECU to the shift lock control unit assembly.

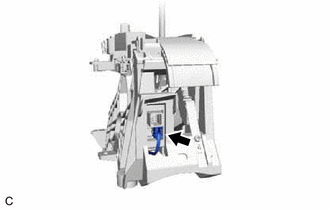

    2. A00Y5EN

      Connect the connector to the shift lock solenoid.

  2. INSTALL LOWER POSITION INDICATOR HOUSING

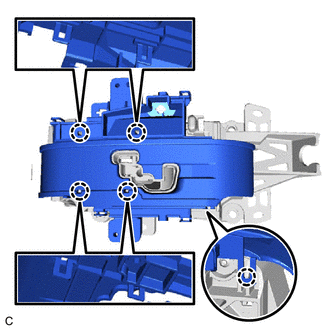

    1. A00Y4ZX

      Engage the 5 claws and install the lower position indicator housing to the shift lock control unit assembly.

  3. INSTALL NO. 2 POSITION INDICATOR SLIDE COVER

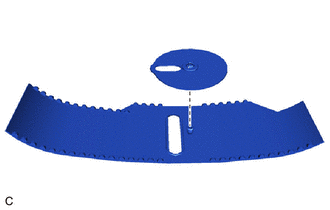

    1. A00Y8RU

      Install the No. 2 position indicator slide cover to the position indicator slide cover.

  4. INSTALL POSITION INDICATOR SLIDE COVER

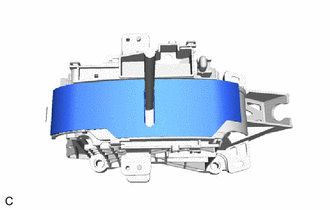

    1. A00Y5RS

      Install the position indicator slide cover to the lower position indicator housing.

  5. INSTALL POSITION INDICATOR LIGHT BULB


    1. Install the cap to the position indicator light bulb.

    2. Install the position indicator light bulb to the position indicator light wire socket.

  6. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY


    1. Engage the clamp and connect the indicator light wire sub-assembly to the lower position indicator housing.

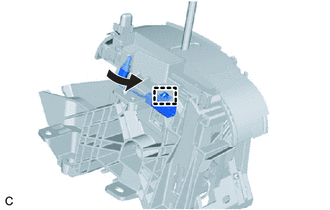

    2. A00YAAV

      Install the indicator light wire sub-assembly to the lower position indicator housing.

  7. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY

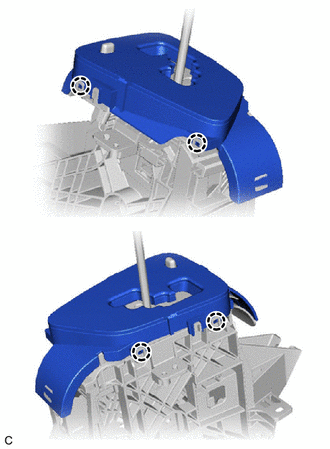

    1. A00YAUD

      Engage the 4 claws and install the floor shift position indicator housing sub-assembly to the lower position indicator housing.
