CLUTCH PEDAL(for LHD) COMPONENTS

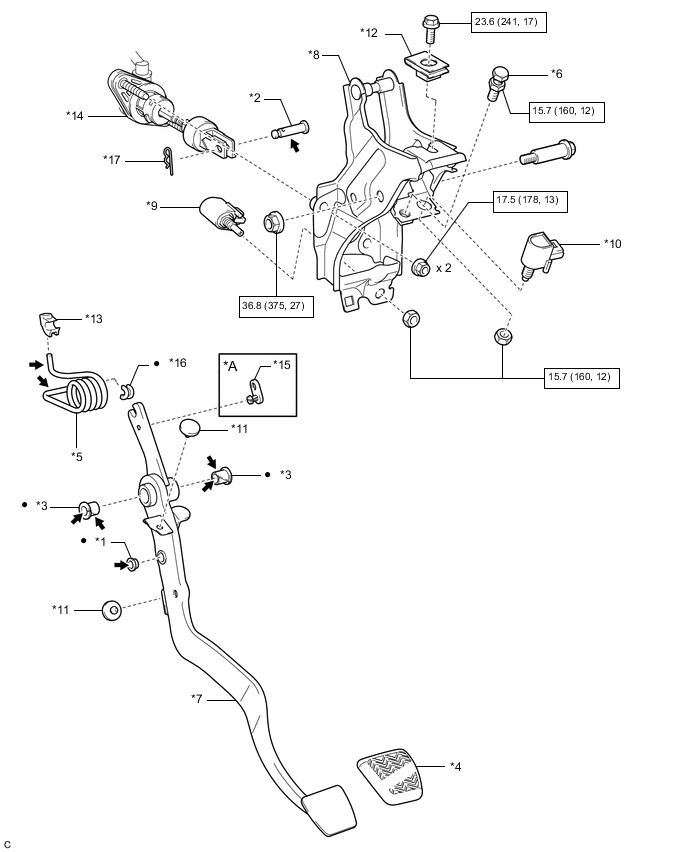

ILLUSTRATION
| *A | for 1NR-FE | - | - |
| *1 | CLUTCH MASTER CYLINDER PUSH ROD CLEVIS BUSHING | *2 | CLUTCH MASTER CYLINDER PUSH ROD CLEVIS WITH HOLE PIN |
| *3 | CLUTCH PEDAL BUSHING | *4 | CLUTCH PEDAL PAD |
| *5 | PEDAL WITH HOOK SPRING | *6 | CLUTCH PEDAL STOPPER BOLT |
| *7 | CLUTCH PEDAL SUB-ASSEMBLY | *8 | CLUTCH PEDAL SUPPORT SUB-ASSEMBLY |
| *9 | CLUTCH PEDAL SWITCH ASSEMBLY | *10 | NO. 2 CLUTCH PEDAL SWITCH ASSEMBLY |
| *11 | NO. 1 CLUTCH PEDAL CUSHION | *12 | NUT |
| *13 | CLUTCH PEDAL SPRING HOLDER | *14 | CLUTCH MASTER CYLINDER ASSEMBLY |
| *15 | OVER CENTER SPRING CAP | *16 | TURNOVER BUSHING |
| *17 | CLIP | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease | - | - |
