CRUISE CONTROL SYSTEM(for 1ND-TV with Driving support ECU) PARTS LOCATION

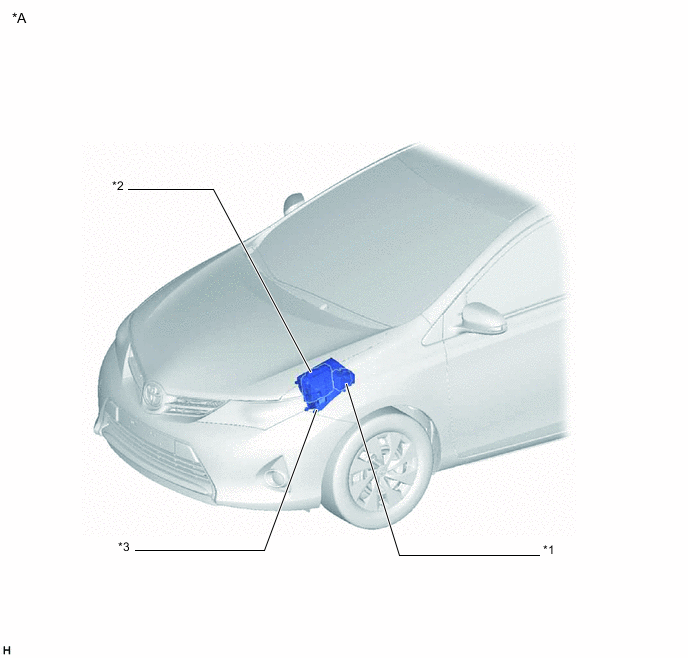

ILLUSTRATION
| *A | for Sedan | - | - |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | ECM |
| *3 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - EFI NO. 1 FUSE |
- | - |

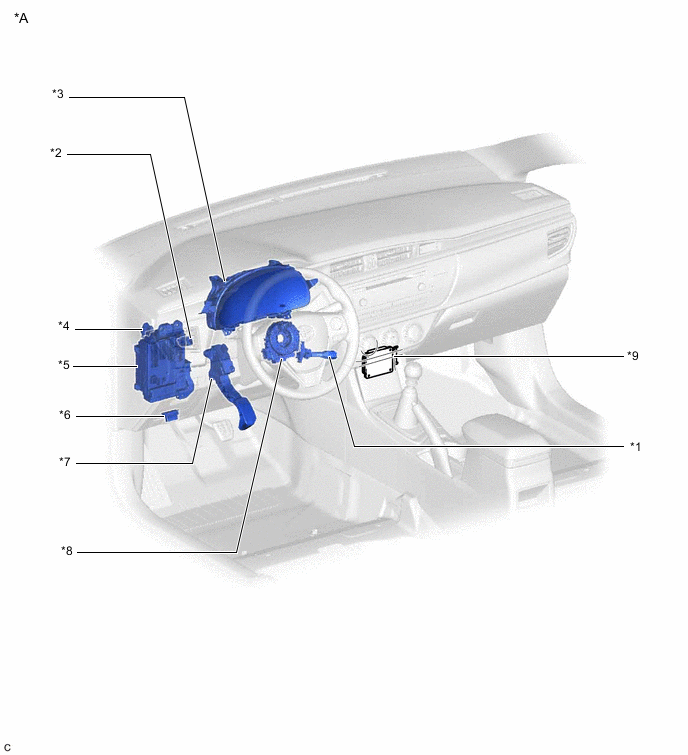

ILLUSTRATION
| *A | for Sedan | - | - |
| *1 | CRUISE CONTROL MAIN SWITCH (CRUISE CONTROL SWITCH) | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | NO. 2 CLUTCH PEDAL SWITCH ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 3 FUSE - IGN FUSE - STOP FUSE |
*6 | DLC3 |
| *7 | ACCELERATOR PEDAL (ACCELERATOR PEDAL POSITION SENSOR) | *8 | SPIRAL CABLE SUB-ASSEMBLY |
| *9 | DRIVING SUPPORT ECU ASSEMBLY | - | - |

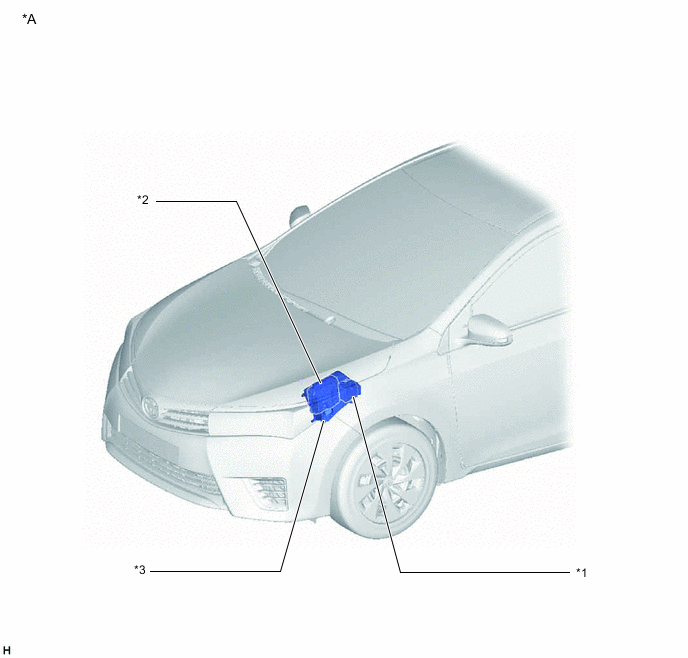

ILLUSTRATION
| *A | for Hatchback, Wagon | - | - |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | ECM |
| *3 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - EFI NO. 1 FUSE |
- | - |

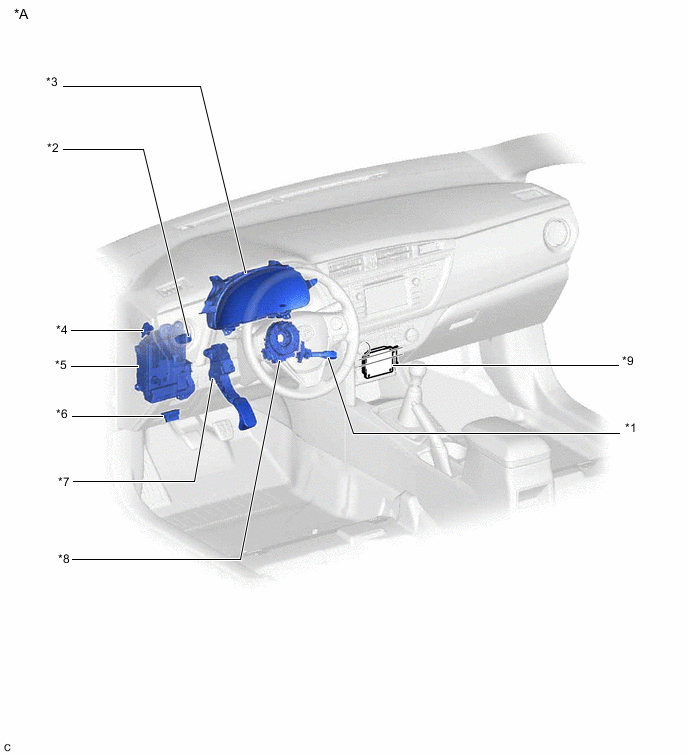

ILLUSTRATION
| *A | for Hatchback, Wagon | - | - |
| *1 | CRUISE CONTROL MAIN SWITCH (CRUISE CONTROL SWITCH) | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | NO. 2 CLUTCH PEDAL SWITCH ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG NO. 3 FUSE - IGN FUSE - STOP FUSE |
*6 | DLC3 |
| *7 | ACCELERATOR PEDAL (ACCELERATOR PEDAL POSITION SENSOR) | *8 | SPIRAL CABLE SUB-ASSEMBLY |
| *9 | DRIVING SUPPORT ECU ASSEMBLY | - | - |
