ULTRASONIC SENSOR(for Hatchback Front Side, Wagon Front Side) REMOVAL

PROCEDURE


  1. REMOVE FRONT BUMPER ASSEMBLY

    Click here

  2. REMOVE NO. 1 ULTRASONIC SENSOR

    Tech Tips

    Use the same procedure for all No. 1 ultrasonic sensors.


    1. Disengage the clamp.

    2. Disconnect the connector.

    3. A01KS95

      Disengage the 2 claws to remove the No. 1 ultrasonic sensor.

      Tech Tips

      This illustration is for the LH front or corner. The orientation for the RH front and corner is the opposite of the LH front or corner.

  3. REMOVE NO. 2 ULTRASONIC SENSOR

    Tech Tips

    Use the same procedure for all No. 2 ultrasonic sensors.


    1. Disconnect the connector.

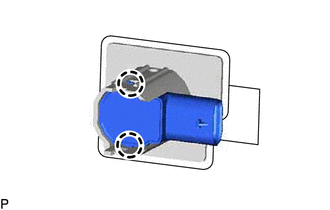

    2. A01KSL5

      Disengage the 2 claws to remove the No. 2 ultrasonic sensor.

      Tech Tips

      This illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

  4. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER

    Tech Tips

    Use the same procedure for all No. 1 ultrasonic sensor retainers.


    1. A01KSSH

      Remove the No. 1 ultrasonic sensor retainer from the front bumper assembly.

      Tech Tips

      This illustration is for the LH front or corner. The orientation for the RH front and corner is the opposite of the LH front or corner.

    2. Remove the old double-sided tape from the front bumper assembly.

  5. REMOVE NO. 2 ULTRASONIC SENSOR RETAINER

    Tech Tips

    Use the same procedure for all No. 2 ultrasonic sensor retainers.

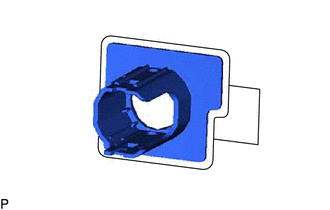

    1. A01KTU9

      Remove the No. 2 ultrasonic sensor retainer from the front bumper assembly.

      Tech Tips

      This illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

    2. Remove the old double-sided tape from the front bumper assembly.
