ULTRASONIC SENSOR(for Sedan Rear Side) REMOVAL

PROCEDURE


  1. REMOVE REAR BUMPER ASSEMBLY

    Click here

  2. REMOVE REAR CENTER ULTRASONIC SENSOR

    Tech Tips

    Use the same procedure for all rear center ultrasonic sensors.

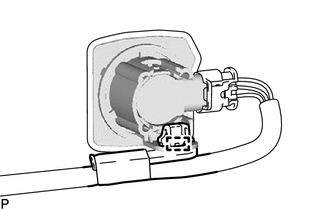

    1. A01TA50

      Disengage the clamp.

    2. Disconnect the connector.

    3. A01TCX9

      Disengage the 2 claws to remove the rear center ultrasonic sensor.

  3. REMOVE ULTRASONIC SENSOR CLIP

    Tech Tips

    Use the same procedure for all ultrasonic sensor clips.

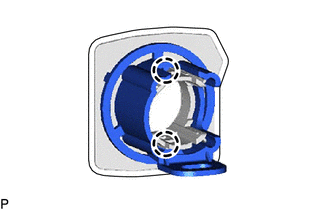

    1. A01TD3B

      Disengage the 2 claws to remove the ultrasonic sensor clip.

  4. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER

    Tech Tips

    Use the same procedure for all rear center ultrasonic sensor retainers.

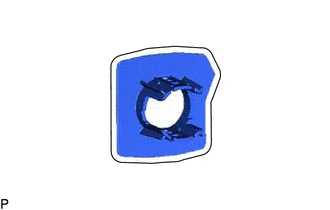

    1. A01T9KO

      Remove the rear center ultrasonic sensor retainer from the rear bumper assembly.

    2. Remove the old double-sided tape from the rear bumper assembly.

  5. REMOVE REAR CORNER ULTRASONIC SENSOR

    Tech Tips

    Use the same procedure for all rear corner ultrasonic sensors.

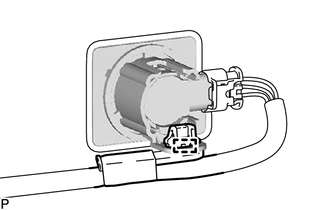

    1. A01TCDW

      Disengage the clamp.

    2. Disconnect the connector.

    3. A01TBLT

      Disengage the 2 claws to remove the rear corner ultrasonic sensor.

  6. REMOVE ULTRASONIC SENSOR CLIP

    Tech Tips

    Use the same procedure for all ultrasonic sensor clips.

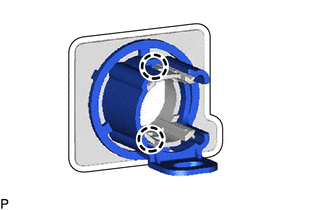

    1. A01TDFB

      Disengage the 2 claws to remove the ultrasonic sensor clip.

  7. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

    Tech Tips

    Use the same procedure for all rear corner ultrasonic sensor retainers.

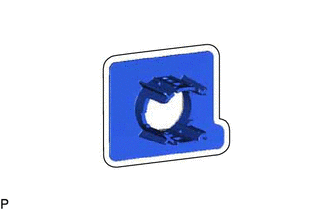

    1. A01TCAN

      Remove the rear corner ultrasonic sensor retainer from the rear bumper assembly.

    2. Remove the old double-sided tape from the rear bumper assembly.
