ULTRASONIC SENSOR(for Sedan Front Side) INSTALLATION

PROCEDURE

1. INSTALL NO. 1 ULTRASONIC SENSOR RETAINER



   1.

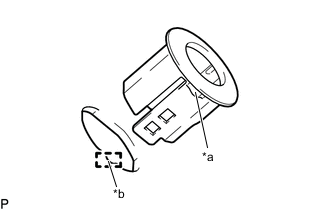

      *a	Protrusion
      *b	Cutout

      Install the No. 1 ultrasonic sensor retainer to the front bumper assembly.

      Note




      • Do not damage the front bumper assembly with the protrusion when installing the No. 1 ultrasonic sensor retainer.

      • Securely install the No. 1 ultrasonic sensor retainer so that there are no gaps between the No. 1 ultrasonic sensor retainer and surface of the front bumper assembly.

      Tech Tips




      • When installing the No. 1 ultrasonic sensor retainer, align the cutout and protrusion as shown in the illustration.




      • This illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.




      • Use the same procedure for all No. 1 ultrasonic sensor retainers.

2. INSTALL ULTRASONIC SENSOR CLIP

   Tech Tips

   Use the same procedure for all ultrasonic sensor clips.




   1. Engage the 2 claws to install the ultrasonic sensor clip.

3. INSTALL NO. 1 ULTRASONIC SENSOR

   Tech Tips

   Use the same procedure for all No. 1 ultrasonic sensors.




   1. Engage the 2 claws to install the No. 1 ultrasonic sensor.

   2. Connect the connector.

4. INSTALL NO. 2 ULTRASONIC SENSOR RETAINER (w/ Simple Intelligent Parking Assist System)



   1.

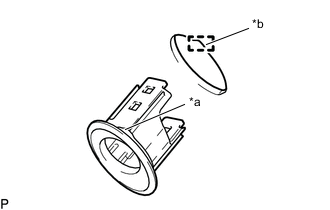

      *a	Protrusion
      *b	Cutout

      Install the No. 2 ultrasonic sensor retainer to the front bumper assembly.

      Note




      • Do not damage the front bumper assembly with the protrusion when installing the No. 2 ultrasonic sensor retainer.

      • Securely install the No. 2 ultrasonic sensor retainer so that there are no gaps between the No. 2 ultrasonic sensor retainer and surface of the front bumper assembly.

      Tech Tips




      • When installing the No. 2 ultrasonic sensor retainer, align the cutout and protrusion as shown in the illustration.




      • This illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.




      • Use the same procedure for all No. 2 ultrasonic sensor retainers.

5. INSTALL ULTRASONIC SENSOR CLIP (w/ Simple Intelligent Parking Assist System)

   Tech Tips

   Use the same procedure for all ultrasonic sensor clips.




   1. Engage the 2 claws to install the ultrasonic sensor clip.

6. INSTALL NO. 2 ULTRASONIC SENSOR (w/ Simple Intelligent Parking Assist System)

   Tech Tips

   Use the same procedure for all No. 2 ultrasonic sensors.




   1. Engage the 2 claws to install the No. 2 ultrasonic sensor.

   2. Connect the connector.

   3.

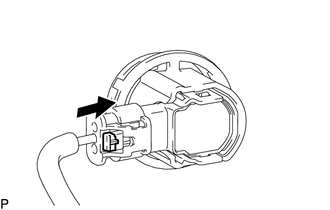

      Slide the connector lock as shown in the illustration.

      Tech Tips

      This illustration is for the LH side. The orientation for the RH side is the opposite of the LH side.

7. INSTALL FRONT BUMPER ASSEMBLY
