ULTRASONIC SENSOR(for Sedan Front Side) COMPONENTS

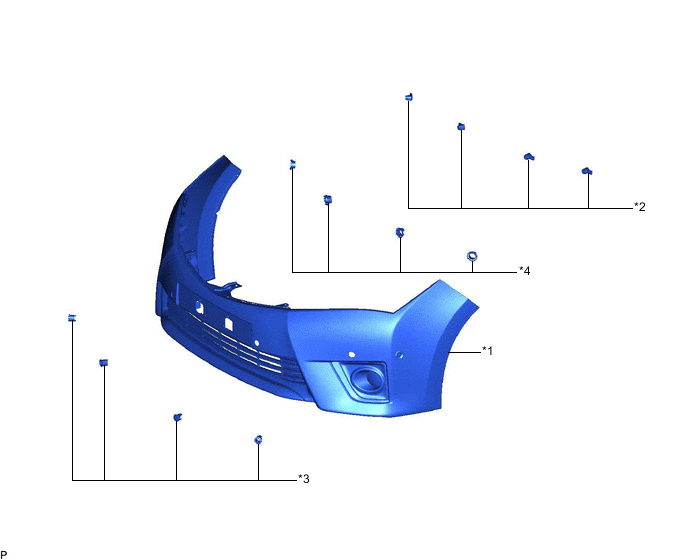

ILLUSTRATION
| *1 | FRONT BUMPER ASSEMBLY | *2 | NO. 1 ULTRASONIC SENSOR |
| *3 | NO. 1 ULTRASONIC SENSOR RETAINER | *4 | ULTRASONIC SENSOR CLIP |

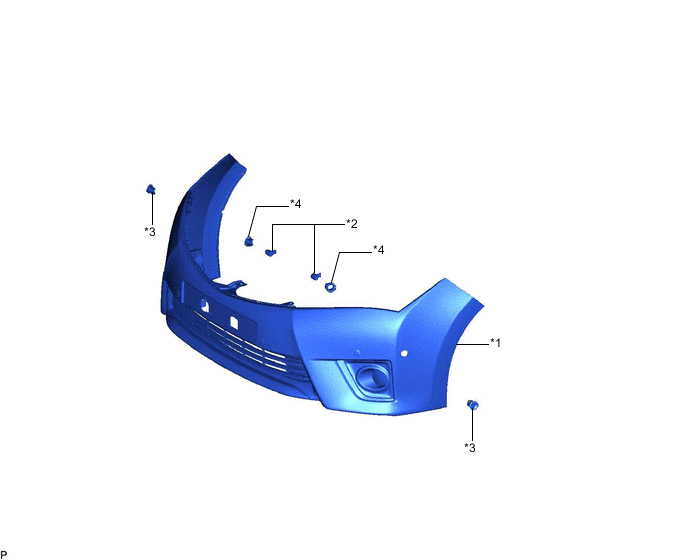

ILLUSTRATION
| *1 | FRONT BUMPER ASSEMBLY | *2 | NO. 2 ULTRASONIC SENSOR |
| *3 | NO. 2 ULTRASONIC SENSOR RETAINER | *4 | ULTRASONIC SENSOR CLIP |
