ULTRASONIC SENSOR(for Hatchback Rear Side) INSTALLATION

PROCEDURE

1. INSTALL ULTRASONIC SENSOR BEZEL

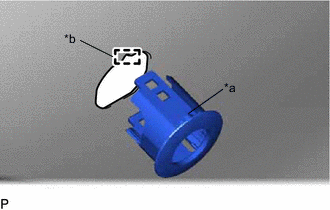

   1.

      *a	Protrusion
      *b	Cutout

      Install the ultrasonic sensor bezel to the rear bumper assembly.

      Note




      • Do not damage the rear bumper assembly with the protrusion when installing the ultrasonic sensor bezel.

      • Securely install the ultrasonic sensor bezel so that there are no gaps between the ultrasonic sensor bezel and surface of the rear bumper assembly.

      Tech Tips




      • When installing the ultrasonic sensor bezel, align the cutout and protrusion as shown in the illustration.




      • This illustration is for the back sensor LH side or corner sensor RH side. The orientation for the back sensor RH side and corner sensor LH side are the opposite of the back sensor LH side or corner sensor RH side.

2. INSTALL ULTRASONIC SENSOR CLIP

   Tech Tips

   Use the same procedure for all ultrasonic sensor clips.




   1. Engage the 2 claws to install the ultrasonic sensor clip.

3. INSTALL NO. 3 ULTRASONIC SENSOR

   Tech Tips

   Use the same procedure for all No. 3 ultrasonic sensors.




   1. Engage the 2 claws to install the No. 3 ultrasonic sensor.

   2. Connect the connector.

   3. for Back Sensor:




      1. Engage the clamp.

4. INSTALL REAR BUMPER ASSEMBLY

   Click here
