BLACK OUT TAPE(for Center Pillar) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

  • When removing the center pillar stripe, heat the vehicle body surface and center pillar stripe using a heat light.

Standard
Item Temperature
Vehicle Body 68 to 86°C (104 to 140°F)
Center Pillar Stripe 20 to 30°C (68 to 86°F)

Note

Do not heat the vehicle body surface or center pillar stripe excessively.

PROCEDURE

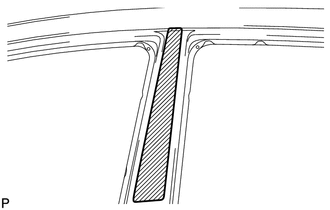

  1. REMOVE CENTER PILLAR STRIPE LH

    A002OYH

    1. Heat the vehicle body surface and center pillar stripe using a heat light.

    2. Pull back an edge of the center pillar stripe and pull it parallel to the vehicle body to remove it.
