ROCKER PANEL MOULDING REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE FRONT SIDE MUDGUARD LH

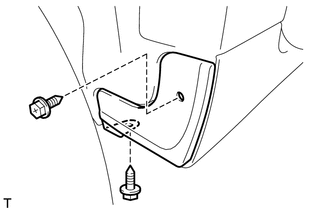

    A002MVR

    1. Remove the 2 screws and front side mudguard.

  2. REMOVE REAR WHEEL HOUSE FRONT PLATE LH

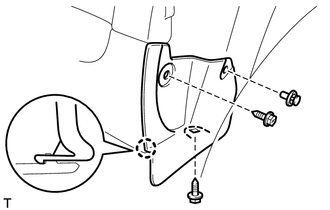

    A002NSM

    1. Remove the 2 screws and clip.

    2. Detach the claw and remove the rear wheel house front plate.

  3. REMOVE ROCKER PANEL MOULDING LH


    1. Remove the 7 grommets.

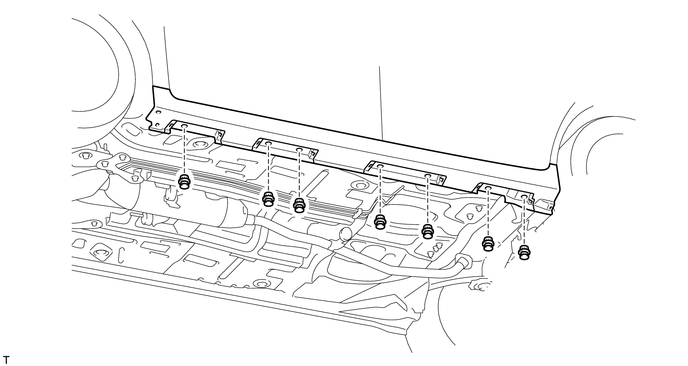

      A002QKR

    2. Put protective tape around the rocker panel moulding.

    3. Remove the 2 screws.

    4. Detach the 8 clips and remove the rocker panel moulding.

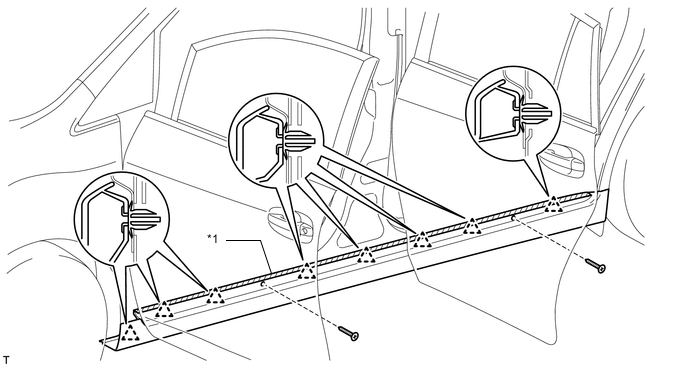

      A002PXME02
      Text in Illustration
      *1 Protective Tape - -
