OUTER MIRROR SWITCH INSPECTION

PROCEDURE


  1. INSPECT OUTER MIRROR SWITCH ASSEMBLY (w/o Retract Mirror)

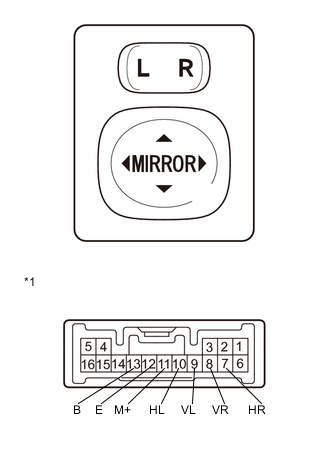

    A002N6QE01
    Text in Illustration
    *1

    Component without harness connected

    (Outer Mirror Switch Assembly)

    1. Inspect the outer mirror switch assembly.


      1. Select "L" on the left/right adjustment switch.

      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Switch Condition Specified Condition

        9 (VL) - 13 (B)

        11 (M+) - 12 (E)

        		 UP Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        9 (VL) - 12 (E)

        11 (M+) - 13 (B)

        		 DOWN Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        10 (HL) - 13 (B)

        11 (M+) - 12 (E)

        		 LEFT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        10 (HL) - 12 (E)

        11 (M+) - 13 (B)

        		 RIGHT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        If the result is not as specified, replace the outer mirror switch assembly.

      3. Select "R" on the left/right adjustment switch.

      4. Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Switch Condition Specified Condition

        8 (VR) - 13 (B)

        11 (M+) - 12 (E)

        		 UP Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        8 (VR) - 12 (E)

        11 (M+) - 13 (B)

        		 DOWN Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        7 (HR) - 13 (B)

        11 (M+) - 12 (E)

        		 LEFT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        7 (HR) - 12 (E)

        11 (M+) - 13 (B)

        		 RIGHT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        If the result is not as specified, replace the outer mirror switch.

  2. REMOVE OUTER MIRROR SWITCH ASSEMBLY (w/ Retract Mirror)

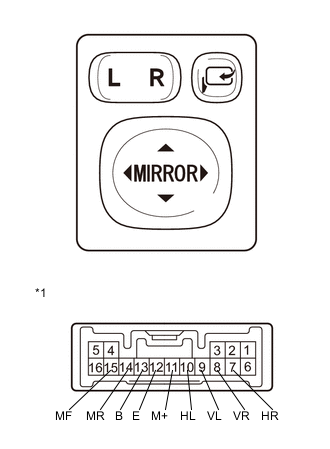

    A002MI4E01
    Text in Illustration
    *1

    Component without harness connected

    (Outer Mirror Switch Assembly)

    1. Inspect the outer mirror switch assembly.


      1. Select "L" on the left/right adjustment switch.

      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Switch Condition Specified Condition

        9 (VL) - 13 (B)

        11 (M+) - 12 (E)

        		 UP Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        9 (VL) - 12 (E)

        11 (M+) - 13 (B)

        		 DOWN Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        10 (HL) - 13 (B)

        11 (M+) - 12 (E)

        		 LEFT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        10 (HL) - 12 (E)

        11 (M+) - 13 (B)

        		 RIGHT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        If the result is not as specified, replace the outer mirror switch assembly.

      3. Select "R" on the left/right adjustment switch.

      4. Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Switch Condition Specified Condition

        8 (VR) - 13 (B)

        11 (M+) - 12 (E)

        		 UP Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        8 (VR) - 12 (E)

        11 (M+) - 13 (B)

        		 DOWN Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        7 (HR) - 13 (B)

        11 (M+) - 12 (E)

        		 LEFT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        7 (HR) - 12 (E)

        11 (M+) - 13 (B)

        		 RIGHT Pressed Below 1 Ω
        Not pressed 10 kΩ or higher

        If the result is not as specified, replace the outer mirror switch.

    2. Check the retract switch.


      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Condition Specified Condition

        13 (B) - 14 (MR)

        15 (MF) - 12 (E)

        		 Pushed in Below 1 Ω

        15 (MF) - 13 (B)

        12 (E) - 14 (MR)

        		 Not pushed in Below 1 Ω

        If the result is not as specified, replace the outer mirror switch assembly.
