OUTER REAR VIEW MIRROR REASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. INSTALL SIDE TURN SIGNAL LIGHT BULB

    Click here

  2. INSTALL SIDE TURN SIGNAL LIGHT LENS LH

    Click here

  3. INSTALL OUTER MIRROR COVER LH

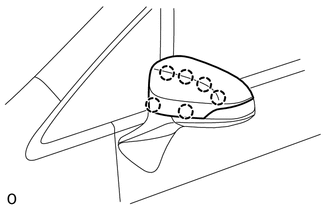

    A002PWQ

    1. Attach the 6 claws to install the outer mirror cover LH.

  4. INSTALL MIRROR SUB-ASSEMBLY LH

    Click here
