OUTER REAR VIEW MIRROR DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE MIRROR SUB-ASSEMBLY LH

    Click here

  2. REMOVE OUTER MIRROR COVER LH

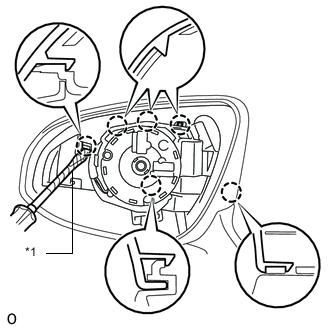

    A002NTFE01
    Text in Illustration
    *1 Protective Tape

    1. Using a screwdriver, detach the 6 claws and remove the outer mirror cover LH.

      Tech Tips

      Tape the screwdriver tip before use.

  3. REMOVE SIDE TURN SIGNAL LIGHT LENS LH

    Click here

  4. REMOVE SIDE TURN SIGNAL LIGHT BULB

    Click here
