OUTER REAR VIEW MIRROR COMPONENTS

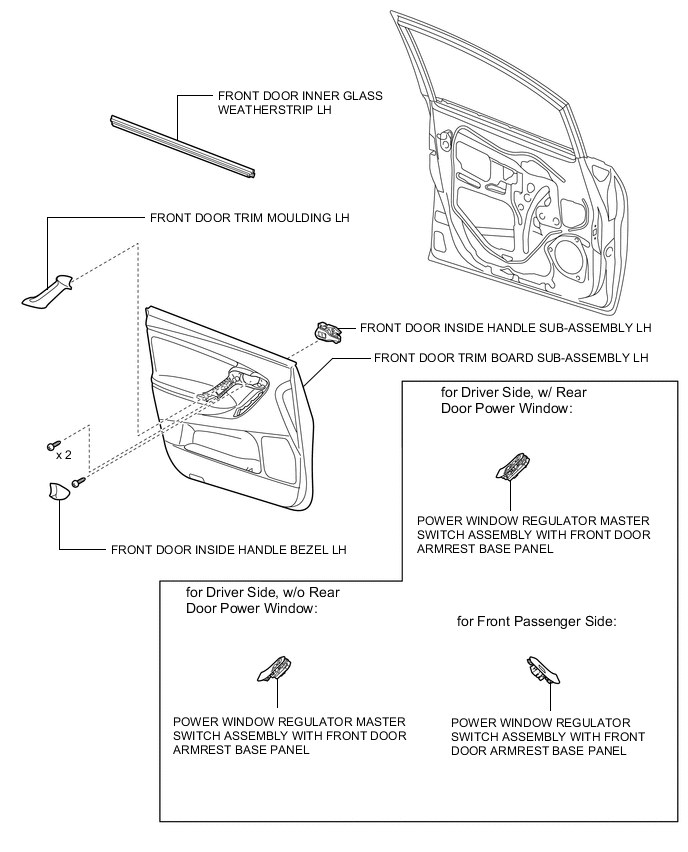

ILLUSTRATION

A002NWCE02

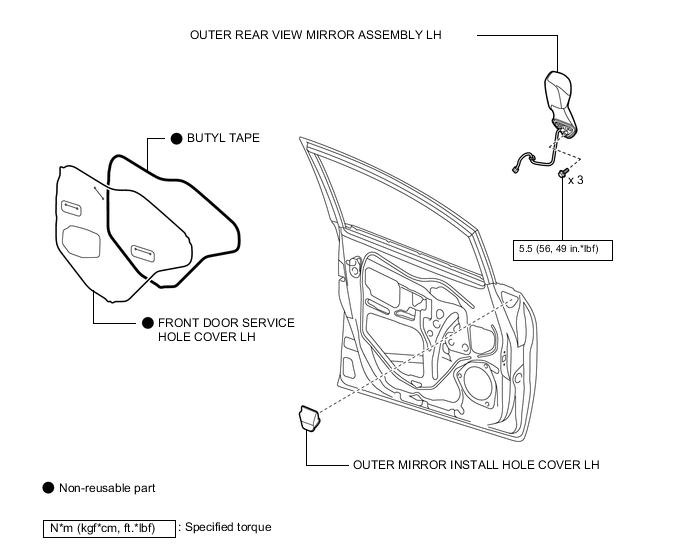

ILLUSTRATION

A002PU0E02

ILLUSTRATION

A002LTRE02
*1 MIRROR SUB-ASSEMBLY LH
*2 OUTER MIRROR COVER LH
*3 SIDE TURN SIGNAL LIGHT BULB
*4 SIDE TURN SIGNAL LIGHT LENS LH
