PATTERN SELECT SWITCH INSPECTION

PROCEDURE


  1. INSPECT PATTERN SELECT SWITCH ASSEMBLY

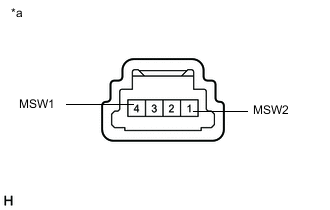

    1. A002LTLE02
      Text in Illustration
      *a

      Component without harness connected

      (Pattern Select Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      1 (MSW2) - 4 (MSW1) Combination switch (SPORT) on Below 1 Ω
      Combination switch (SPORT) off 10 kΩ or higher

      If the result is not as specified, replace the pattern select switch assembly.
