PATTERN SELECT SWITCH COMPONENTS

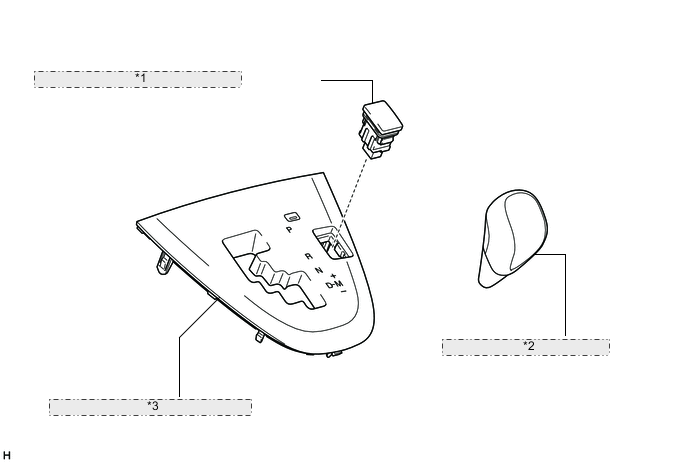

ILLUSTRATION

for LHD

*1	NO. 1 PATTERN SELECT SWITCH ASSEMBLY
*2	SHIFT LEVER KNOB SUB-ASSEMBLY
*3	POSITION INDICATOR HOUSING ASSEMBLY

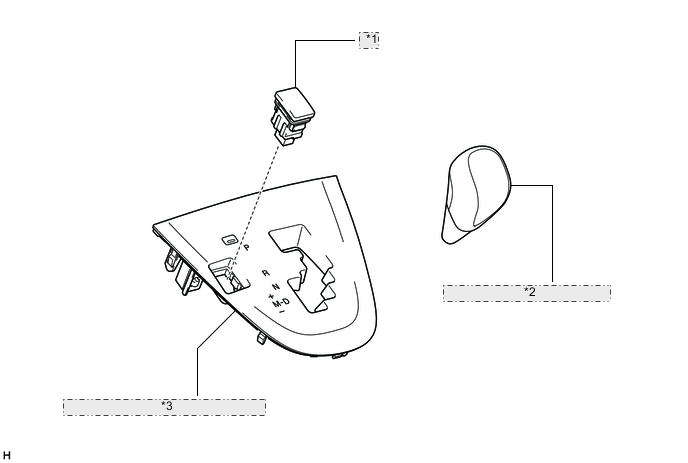

ILLUSTRATION

for RHD

*1	NO. 1 PATTERN SELECT SWITCH ASSEMBLY
*2	SHIFT LEVER KNOB SUB-ASSEMBLY
*3	POSITION INDICATOR HOUSING ASSEMBLY
