SLIDING ROOF HOUSING REASSEMBLY

PROCEDURE


  1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

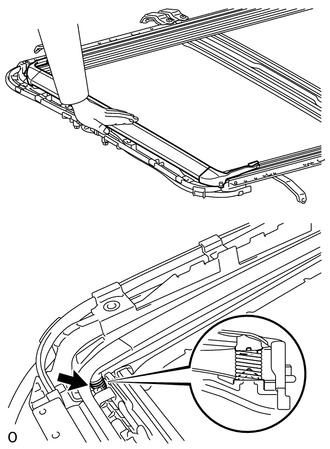

    1. Hold down the window deflector.

      Note

      Make sure that the spring indicated by the arrow in the illustration is securely installed.

      A01WV35

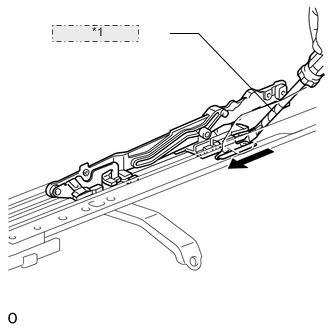

    2. A01WTHKE01
      *1 Protective Tape

      Using a screwdriver, slide the drive cable in the direction indicated by the arrow in the illustration to install it.

      Tech Tips

      Tape the screwdriver tip before use.

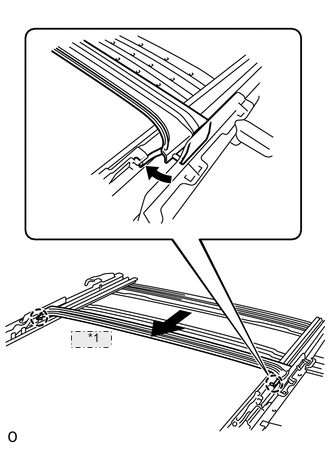

    3. A01WSMWE01
      *1 Forward

      Slide the rear roof drip channel forward and attach the 2 claws to install it.

    4. A01WWBN

      Install the 2 stoppers with the 2 screws.

  2. ADJUST SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

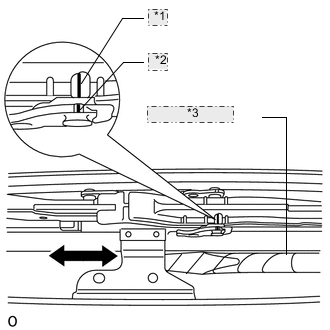

    A01WVOGE01
    *1 Matchmark A
    *2 Matchmark B
    *3 Protective Tape

    1. Using a screwdriver, align the matchmarks by sliding the drive cable in the directions indicated by the arrow in the illustration.

      Tech Tips

      Tape the screwdriver tip before use.

  3. INSTALL SLIDING ROOF SUNSHADE STOPPER LH


    1. A01WQ4L

      Install the stopper.

  4. INSTALL SLIDING ROOF SUNSHADE STOPPER RH

    Tech Tips

    Use the same procedures described for the LH side.

  5. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

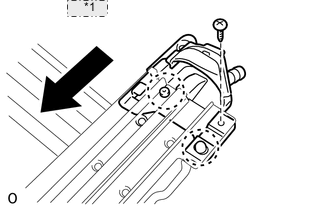

    1. A01WRNME01
      *1 Forward

      Insert the sunshade trim into the sliding roof housing.

    2. Attach the 4 claws to install the sliding roof piece LH and RH.

    3. Install the 2 screws.

  6. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

    A01WTLN

    1. Install the drive gear and room light bracket with the 2 bolts.

      Torque:
      5.4 N*m  { 55 kgf*cm, 48 in.*lbf }
    2. A01WQWY

      Attach the bracket claw to install the bracket.
