SLIDING ROOF HOUSING DISASSEMBLY

PROCEDURE


  1. REMOVE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

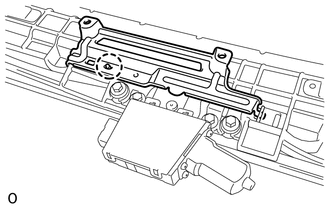

    1. A01WQWY

      Detach the bracket claw and remove the bracket.

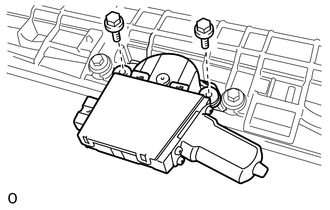

    2. A01WTLN

      Remove the 2 bolts, room light bracket and drive gear.

  2. REMOVE SUNSHADE TRIM SUB-ASSEMBLY

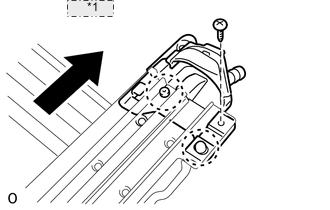

    A01WW9KE01
    *1 Rearward

    1. Remove the 2 screws.

    2. Detach the 4 claws and remove the sliding roof piece LH and RH.

    3. Slide and remove the trim.

  3. REMOVE SLIDING ROOF SUNSHADE STOPPER LH

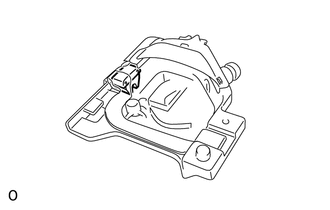

    1. A01WQ4L

      Remove the stopper.

  4. REMOVE SLIDING ROOF SUNSHADE STOPPER RH

    Tech Tips

    Use the same procedures described for the LH side.

  5. REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

    Note

    Do not disassemble the sliding roof drive cable sub-assembly except when replacing it.

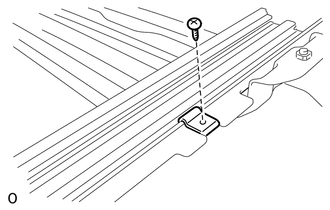

    1. A01WWBN

      Remove the 2 screws and 2 stoppers.

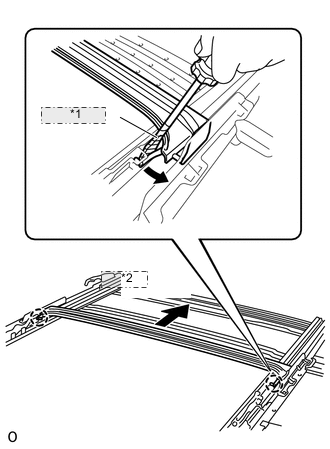

    2. A01WPI5E05
      *1 Protective Tape
      *2 Rearward

      Using a screwdriver, detach the 2 claws and slide the rear roof drip channel rearward to remove it.

      Tech Tips

      Tape the screwdriver tip before use.

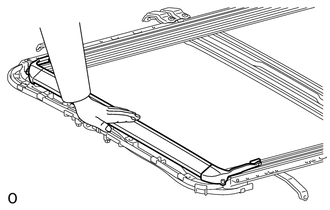

    3. A01WPCW

      Hold down the window deflector.

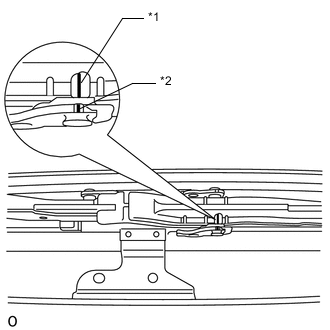

    4. A01WU7GE01
      *1 Matchmark A
      *2 Matchmark B

      Place matchmarks on the sliding roof drive cable sub-assembly at locations A and B as shown in the illustration.

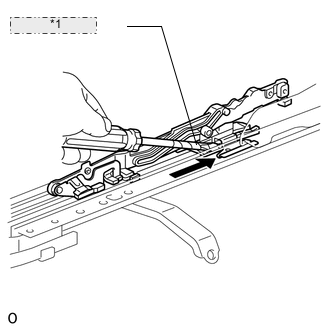

    5. A01WTNFE01
      *1 Protective Tape

      Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to remove it.

      Tech Tips

      Tape the screwdriver tip before use.
