SLIDING ROOF HOUSING REMOVAL

PROCEDURE


  1. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  2. REMOVE UPPER RADIATOR SUPPORT SEAL

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  4. REMOVE ROOF HEADLINING ASSEMBLY


    1. Remove the roof headlining Click here.

  5. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH


    1. Remove the airbag Click here.

  6. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  7. REMOVE REAR NO. 5 ROOF AIR DUCT

    B001AEI

    1. Detach the 2 clips and remove the air duct.

  8. REMOVE REAR NO. 4 ROOF AIR DUCT

    Tech Tips

    Use the same procedures described for the No. 5 roof air duct.

  9. REMOVE SLIDING ROOF SIDE GARNISH LH

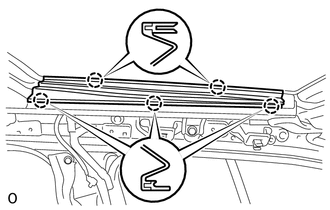

    B001AZM

    1. Detach the 5 claws and remove the side garnish.

  10. REMOVE SLIDING ROOF SIDE GARNISH RH

    Tech Tips

    Use the same procedures described for the LH side.

  11. REMOVE SLIDING ROOF GLASS SUB-ASSEMBLY

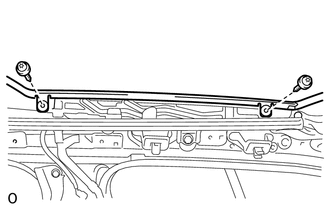

    B00198S

    1. Using a T25 "TORX" driver, remove the 4 screws and glass.

  12. REMOVE SLIDING ROOF WEATHERSTRIP


    1. Remove the sliding roof weatherstrip.

  13. REMOVE SLIDING ROOF HOUSING SUB-ASSEMBLY


    1. Disconnect the 4 sliding roof drain hoses.

    2. Remove the 4 bolts and 4 nuts.

      B0019ML

    3. Loosen the 4 nuts as shown in the illustration.

      B0019PV

      Note

      Be sure that the nuts are fully threaded onto the bolts.

    4. B00198LE08
      Text in Illustration
      *1 Bracket (Roof Panel)
      *2 Sliding Roof Lock Catch Plate LH Claw
      *3 Sliding Roof Housing Sub-assembly

      Pull the sliding roof housing sub-assembly downward and detach the 2 claws of the sliding roof lock catch plate LH form the stud bolt as shown in the illustration.

      Note

      Performing this procedure breaks the claws of the sliding roof lock catch plate LH so that the sliding roof housing sub-assembly can be removed. However, do not use excessive force.

    5. Remove the 4 nuts and sliding roof housing subassembly.

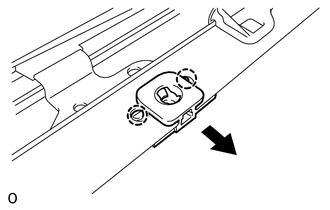

    6. B001959

      Detach the 2 claws and remove the sliding roof lock catch plate LH from the sliding roof housing subassembly.

      Tech Tips

      The sliding roof lock catch plate LH is used when the vehicle is assembled at the factory and is not needed for reinstallation.
