VANITY LIGHT INSPECTION

PROCEDURE


  1. INSPECT VISOR ASSEMBLY LH (VANITY LIGHT)

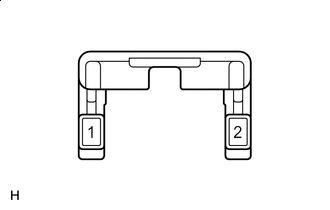

    B0018Q1C03
    *a

    Component without harness connected

    (Visor Assembly LH (Vanity Light))

    1. Apply battery voltage to the connector and check the light illumination condition.

      OK
      Measurement Condition Condition Specified Condition

      Battery positive (+) → 2 (B)

      Battery negative(-) → 1 (E)

      		 Visor raised Off
      Visor lowered and mirror cover closed Off
      Visor lowered and mirror cover open Illuminates

      If the result is not as specified, there may be a malfunction in the visor assembly LH (vanity light).

  2. INSPECT VISOR ASSEMBLY RH (VANITY LIGHT)

    B0018Q1C04
    *a

    Component without harness connected

    (Visor Assembly RH (Vanity Light))

    1. Apply battery voltage to the connector and check the light illumination condition.

      OK
      Measurement Condition Condition Specified Condition

      Battery positive (+) → 1 (B)

      Battery negative(-) → 2 (E)

      		 Visor raised Off
      Visor lowered and mirror cover closed Off
      Visor lowered and mirror cover open Illuminates

      If the result is not as specified, there may be a malfunction in the visor assembly RH (vanity light).
