VANITY LIGHT INSPECTION

PROCEDURE


  1. INSPECT VISOR ASSEMBLY LH (VANITY LIGHT)

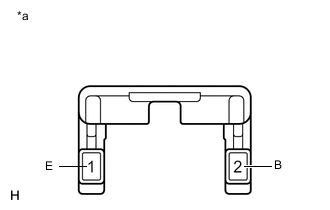

    A01WQ74E01
    Text in Illustration
    *a

    Component without harness connected

    (Visor Assembly LH (Vanity Light))

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      2 (B) - 1 (E) Visor raised 10 kΩ or higher
      2 (B) - 1 (E) Visor lowered and mirror cover closed 10 kΩ or higher
      2 (B) - 1 (E) Visor lowered and mirror cover open Below 1 Ω

      If the result is not as specified, there may be a malfunction in the visor assembly LH (vanity light).

  2. INSPECT VISOR ASSEMBLY RH (VANITY LIGHT)

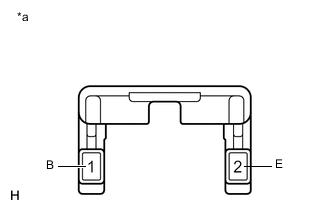

    A01WQS3E01
    Text in Illustration
    *a

    Component without harness connected

    (Visor Assembly RH (Vanity Light))

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 (B) - 2 (E) Visor raised 10 kΩ or higher
      1 (B) - 2 (E) Visor lowered and mirror cover closed 10 kΩ or higher
      1 (B) - 2 (E) Visor lowered and mirror cover open Below 1 Ω

      If the result is not as specified, there may be a malfunction in the visor assembly RH (vanity light).
