TRUNK LID ACTUATOR INSTALLATION

PROCEDURE


  1. INSTALL LUGGAGE CLOSER MOTOR ASSEMBLY

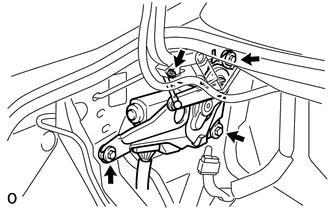

    1. A000UQE

      Install the luggage closer motor assembly with the 3 bolts and nut.

      Torque:
      5.5 N*m  { 55 kgf*cm, 49 in.*lbf }

    2. Connect the connector.

  2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

    Click here

  3. INSTALL REAR FLOOR FINISH PLATE

    Click here

  4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

    Click here

  5. INSTALL NO. 1 COOLER COVER (w/ Rear Cooler)

    Click here

  6. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Click here

  7. INSTALL DECK TRIM SIDE BOARD RH

    Click here

  8. INSTALL ROPE HOOK ASSEMBLY

    Click here

  9. INSTALL ROPE HOOK

    Click here

  10. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  11. INSTALL BATTERY SERVICE HOLE COVER LH

    Click here

  12. INSTALL DECK TRIM SIDE BOARD LH (w/o Spare Tire)

    Click here

  13. INSTALL DECK BOARD ASSEMBLY (w/o Spare Tire)

    Click here

  14. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Spare Tire)

    Click here
