REAR DOOR COMPONENTS

ILLUSTRATION

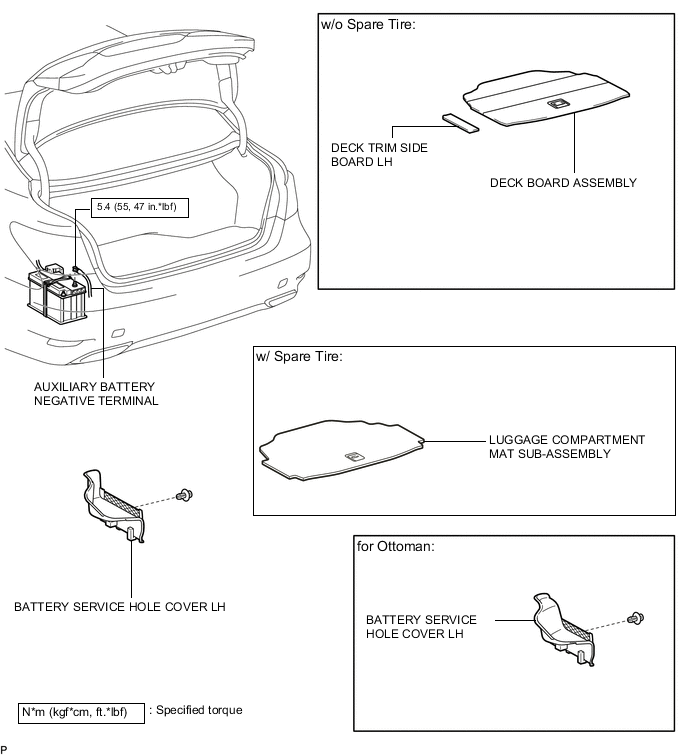

A000ZYTC56

ILLUSTRATION

A000Z7EE06

ILLUSTRATION

A000VKLE01

ILLUSTRATION

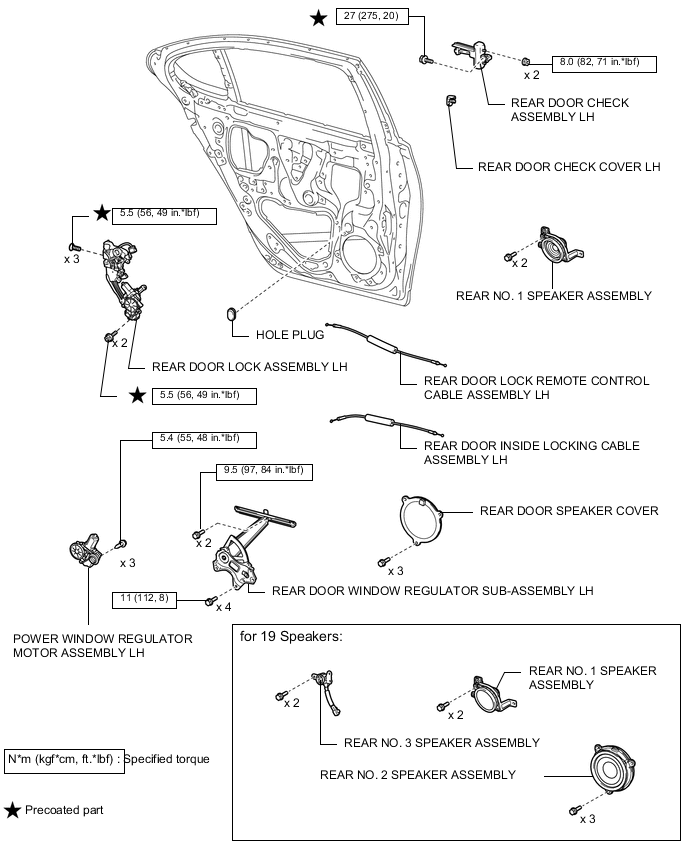

A001011E01

ILLUSTRATION

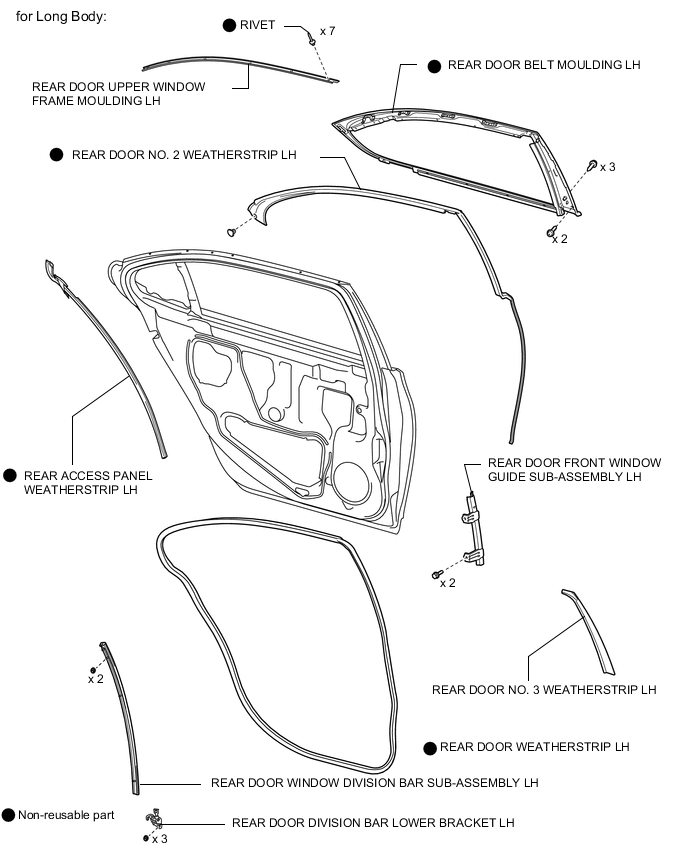

A000Y0UE01

ILLUSTRATION

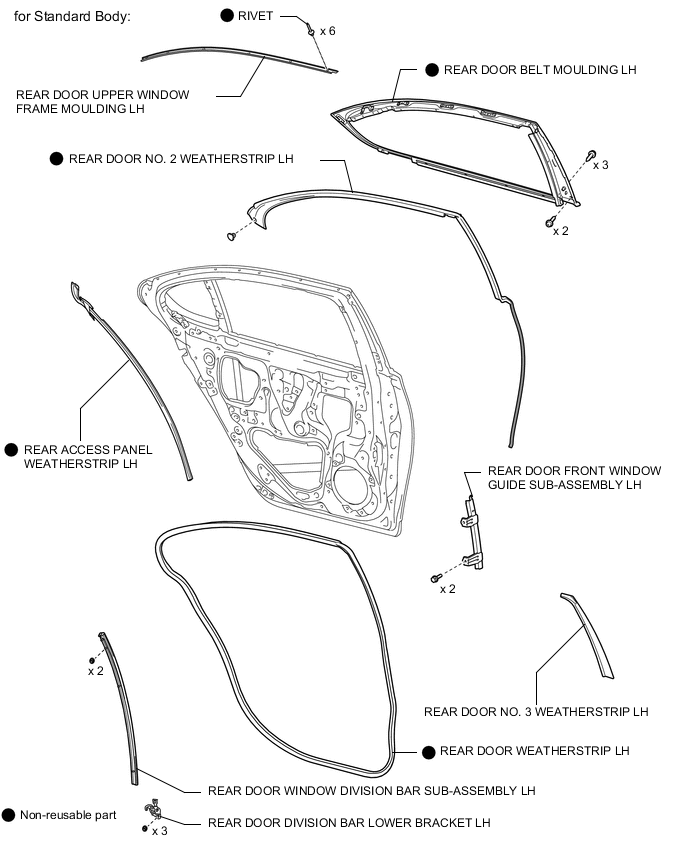

A000V9DE01

ILLUSTRATION

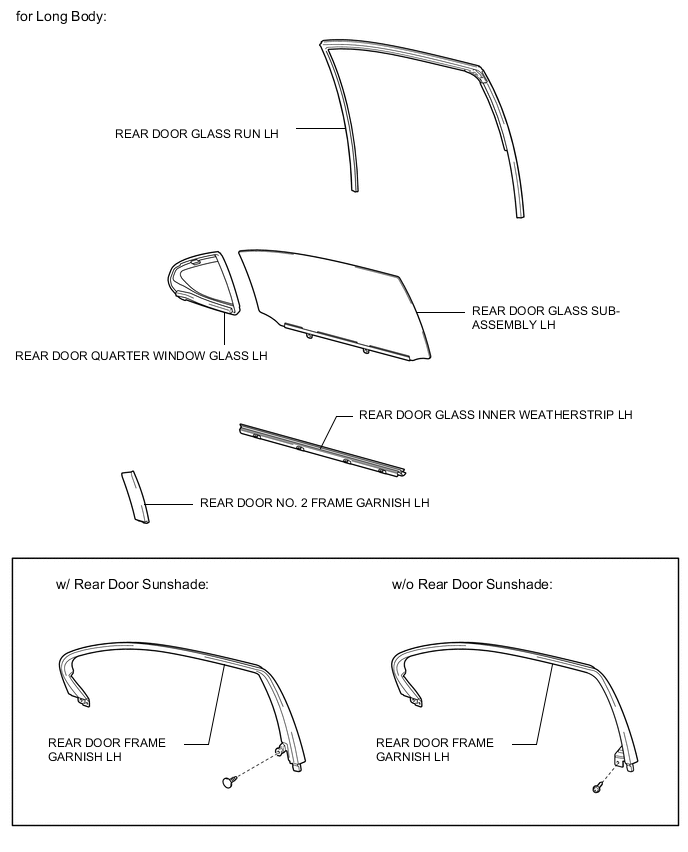

A000Z6BE01

ILLUSTRATION

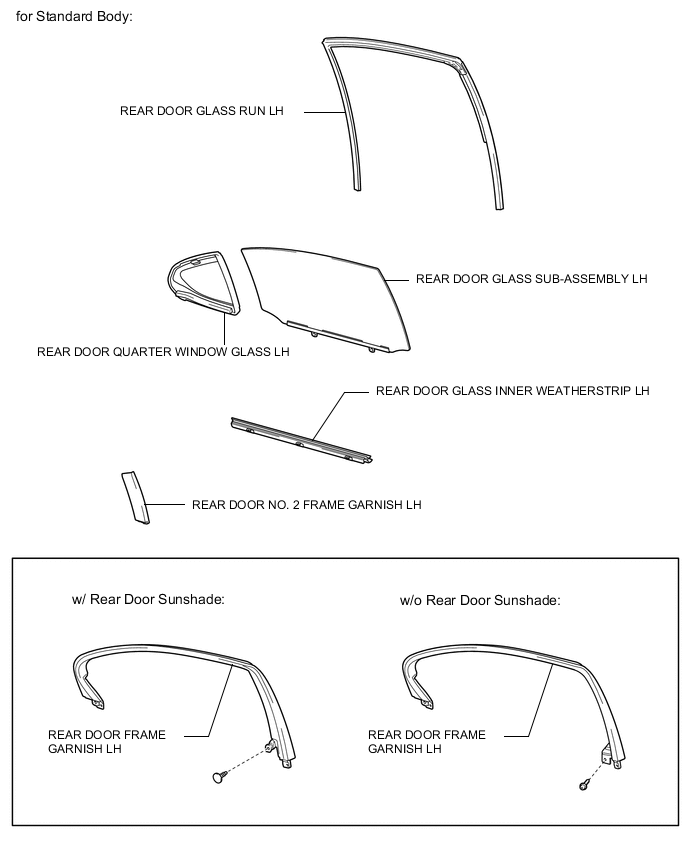

A000XMOE01

ILLUSTRATION

A000VVVC02
w/ Rear Door Sunshade, for Standard Body
*a NO. 1 AUTO CURTAIN RAIL BRACKET LH
*b SIDE TRIM BOARD COVER REAR LH
*c REAR LH CURTAIN SUB-ASSEMBLY

ILLUSTRATION

A000TU8E11
w/ Rear Door Sunshade, for Long Body
*a NO. 1 AUTO CURTAIN RAIL BRACKET LH
*b SIDE TRIM BOARD COVER REAR LH
*c REAR LH CURTAIN SUB-ASSEMBLY
