REAR DOOR COMPONENTS

ILLUSTRATION

A000ZYTE08

ILLUSTRATION

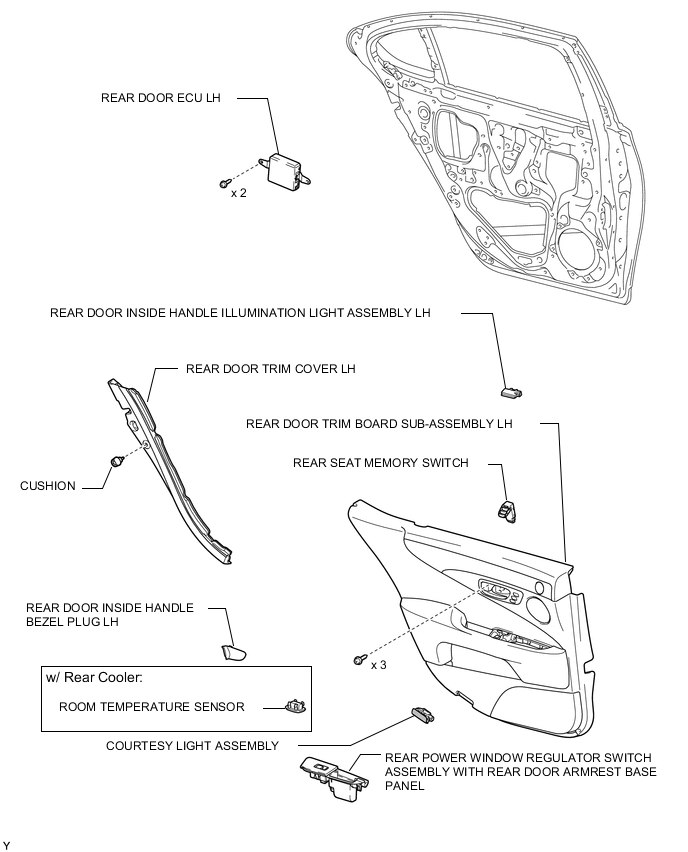

A000Z7EE06

ILLUSTRATION

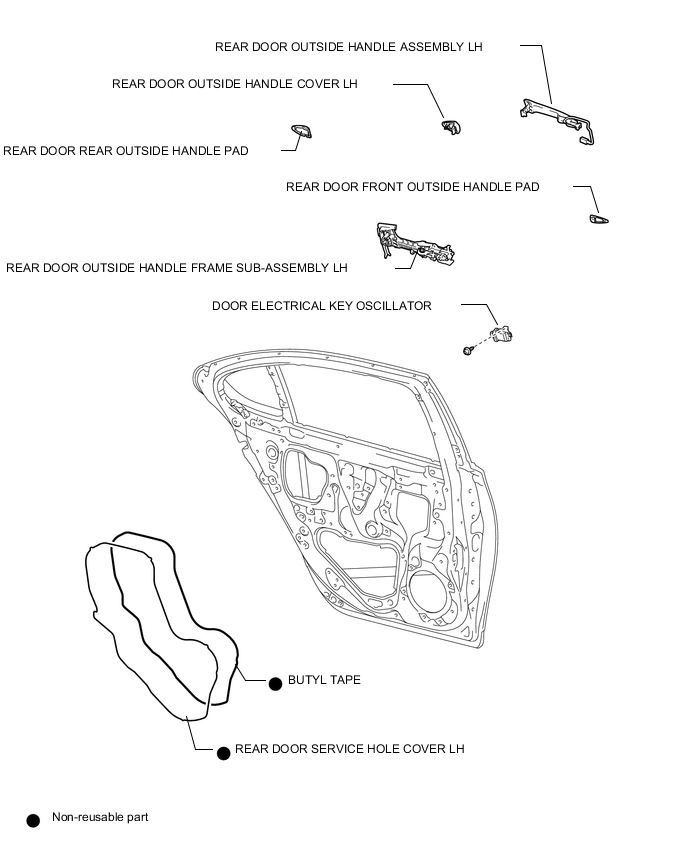

A000VKLE01

ILLUSTRATION

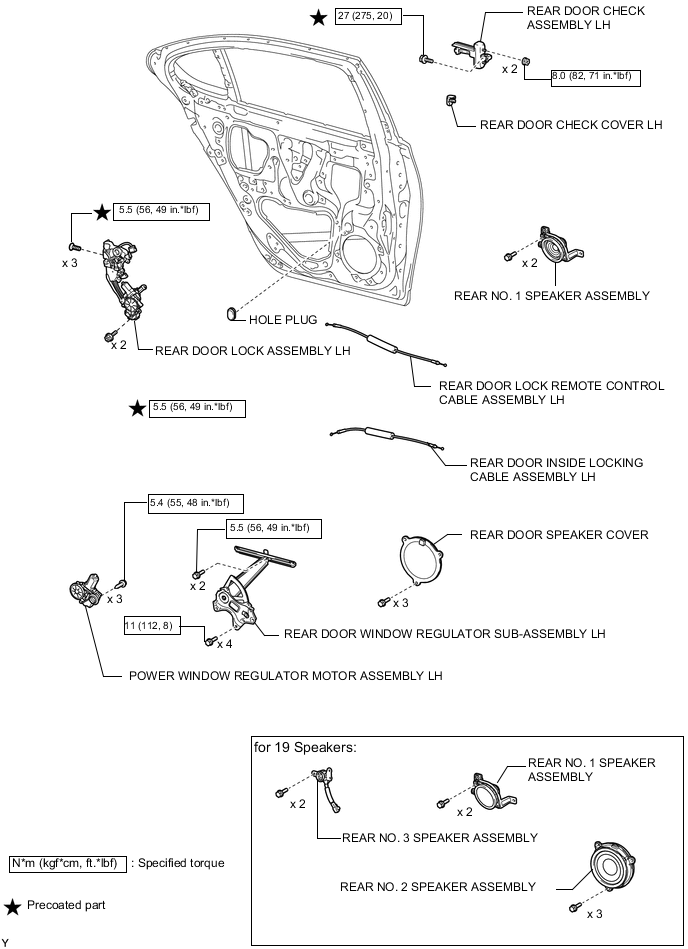

A000ZKTE01

ILLUSTRATION

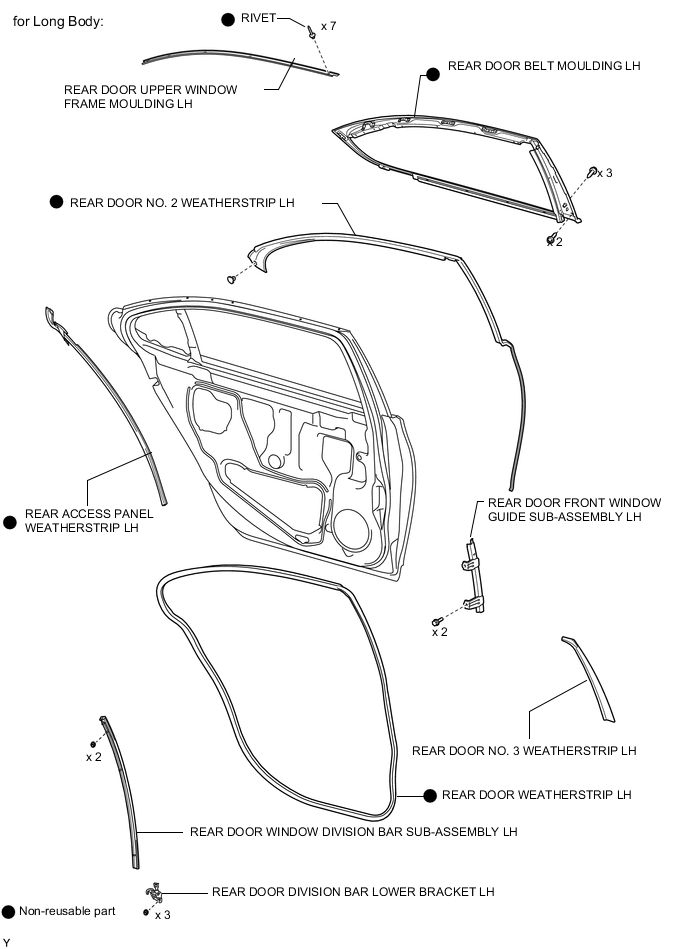

A000WRKE03

ILLUSTRATION

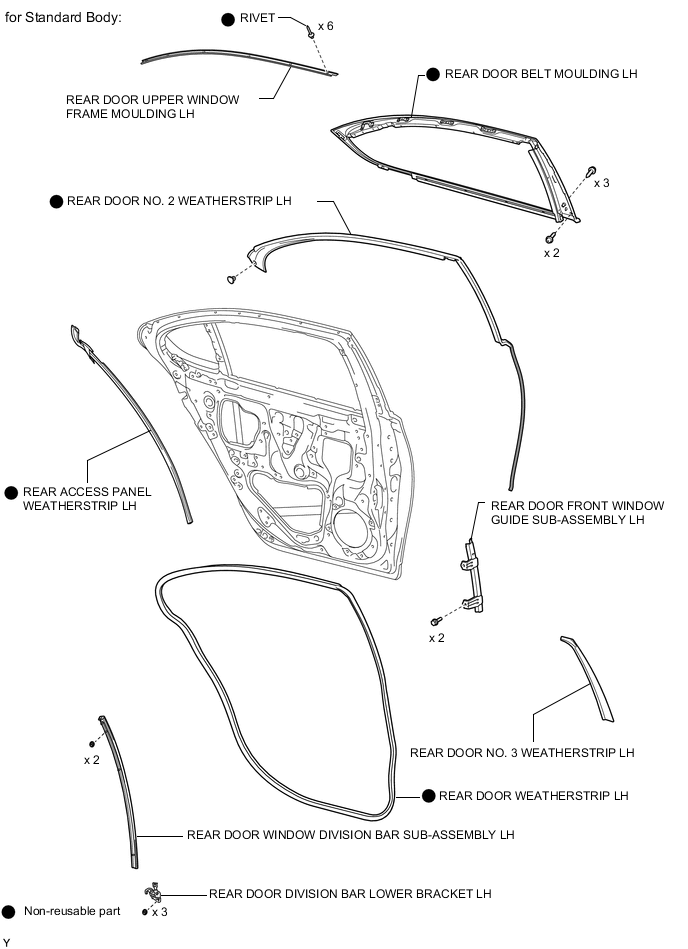

A000Z06E03

ILLUSTRATION

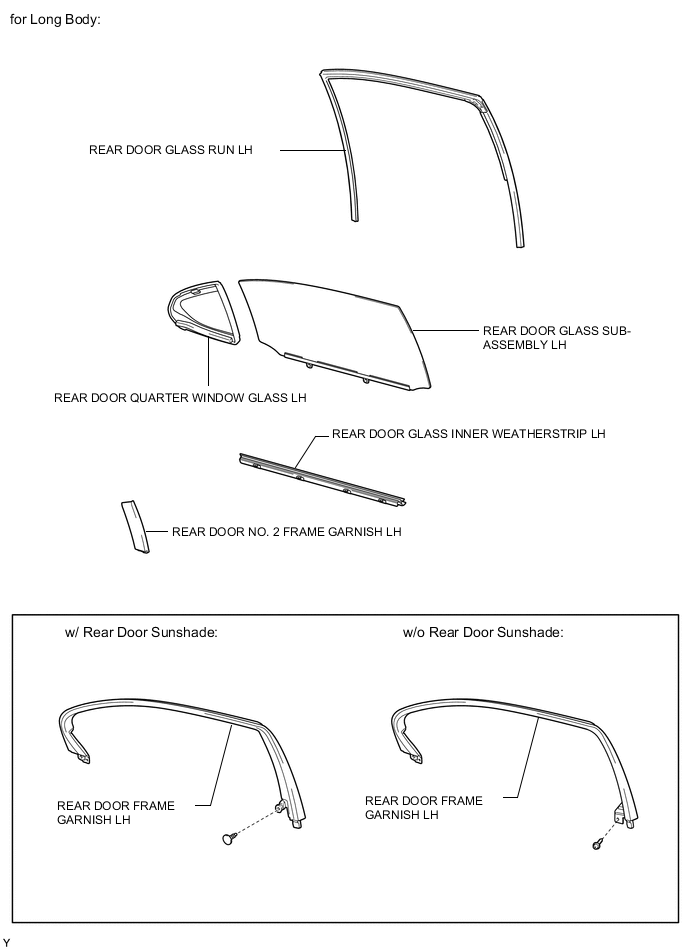

A000XB3E03

ILLUSTRATION

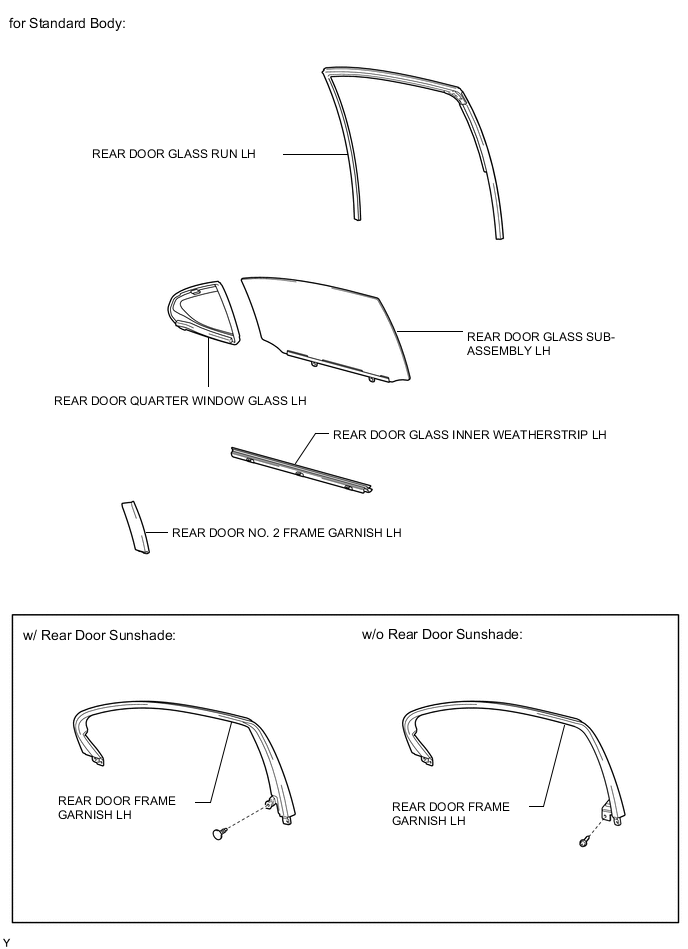

A000ZDFE03

ILLUSTRATION

A000VVVE07
w/ Rear Door Sunshade, for Standard Body
*a NO. 1 AUTO CURTAIN RAIL BRACKET LH
*b SIDE TRIM BOARD COVER REAR LH
*c REAR LH CURTAIN SUB-ASSEMBLY

ILLUSTRATION

A000TU8E11
w/ Rear Door Sunshade, for Long Body
*a NO. 1 AUTO CURTAIN RAIL BRACKET LH
*b SIDE TRIM BOARD COVER REAR LH
*c REAR LH CURTAIN SUB-ASSEMBLY
