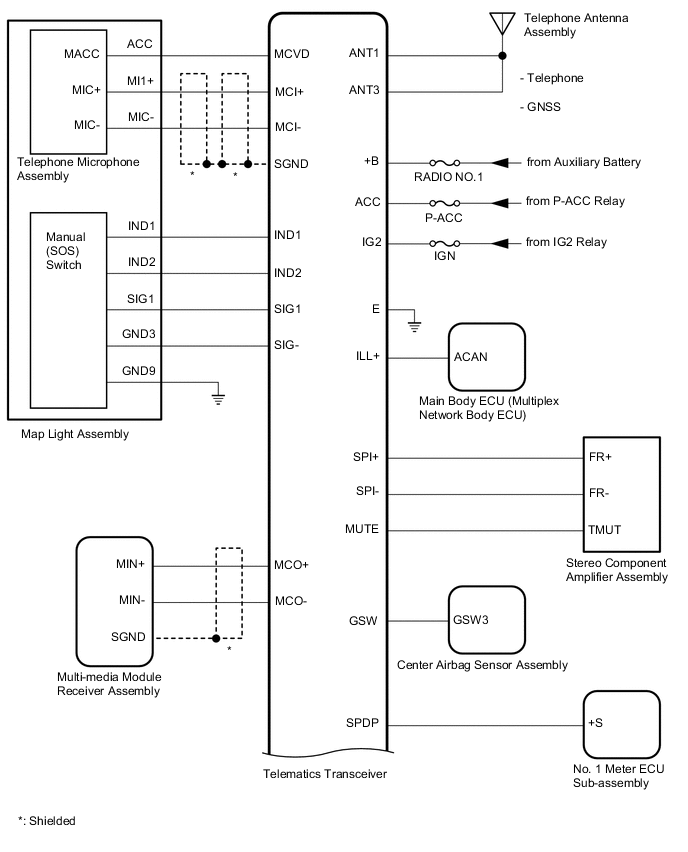

TELEMATICS SYSTEM(w/ Telematics Transceiver except G-BOOK) SYSTEM DIAGRAM
| *1 | Front No. 2 Speaker Assembly RH |
| *2 | Telematics Transceiver |
| *3 | CAN Communication Line |
| *1 | Front No. 2 Speaker Assembly RH |
| *2 | Telematics Transceiver |
| *3 | CAN Communication Line |
