TELEMATICS SYSTEM(w/ Telematics Transceiver except G-BOOK) PARTS LOCATION

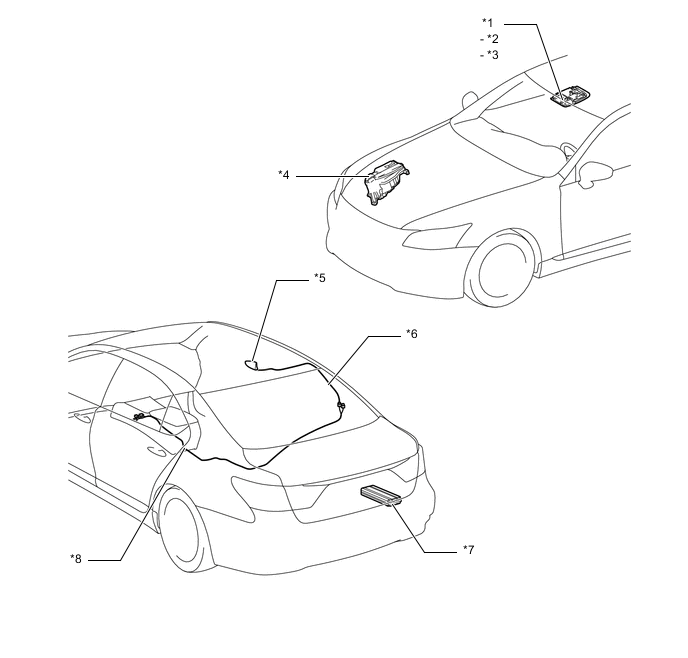

ILLUSTRATION

A000Z8QC01
*1 MAP LIGHT ASSEMBLY *2 TELEPHONE MICROPHONE ASSEMBLY
*3 MANUAL (SOS) SWITCH *4

ENGINE ROOM NO. 2 RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY


  • - IGN FUSE
*5 TELEPHONE ANTENNA ASSEMBLY *6 NO. 3 ANTENNA CORD SUB-ASSEMBLY
*7 STEREO COMPONENT AMPLIFIER ASSEMBLY *8 NO. 2 ANTENNA CORD SUB-ASSEMBLY

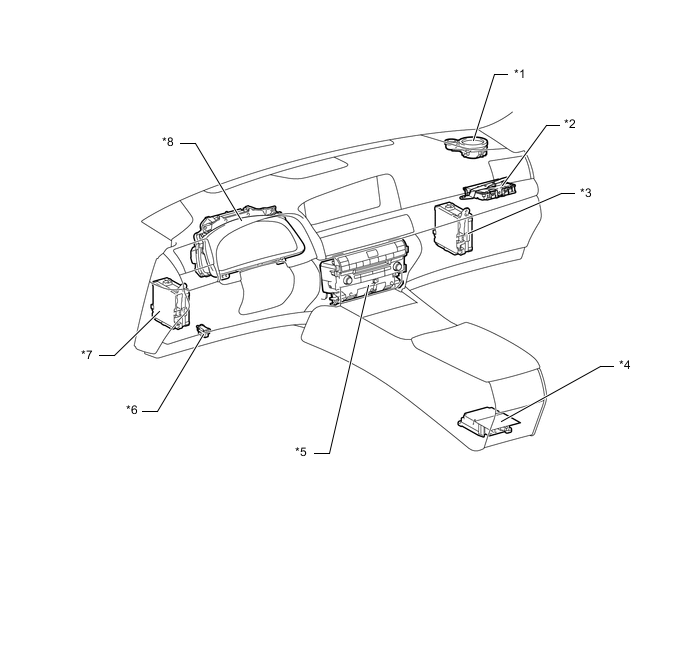

ILLUSTRATION

A000Y0AC02
*1 FRONT NO. 2 SPEAKER ASSEMBLY RH *2

TELEMATICS TRANSCEIVER

- MOBILEPHONE BATTERY
*3

PASSENGER SIDE JUNCTION BLOCK ASSEMBLY


  • - RADIO NO.1 FUSE

  • - P-ACC FUSE

 *4 CENTER AIRBAG SENSOR ASSEMBLY
*5 MULTI-MEDIA MODULE RECEIVER ASSEMBLY *6 DLC3
*7

DRIVER SIDE JUNCTION BLOCK ASSEMBLY


  • - MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

 *8

COMBINATION METER ASSEMBLY


  • - NO. 1 METER ECU SUB-ASSEMBLY
