REAR PACKAGE TRAY SPEAKER REMOVAL

PROCEDURE


  1. PRECAUTION

    CAUTION:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notices before proceeding with work Click here.

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Spare Tire)

    Click here

  3. REMOVE DECK BOARD ASSEMBLY (w/o Spare Tire)

    Click here

  4. REMOVE DECK TRIM SIDE BOARD LH (w/o Spare Tire)

    Click here

  5. REMOVE BATTERY SERVICE HOLE COVER LH

    Click here

  6. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  7. REMOVE REAR SEAT ASSEMBLY


    1. for Power Seat:

      Click here

    2. for Ottoman Seat:

      Click here

    3. for Fixed Seat Type:

      Click here

  8. REMOVE REAR DOOR SCUFF PLATE LH


    1. for Standard Body:

      Click here

    2. for Long Body:

      Click here

  9. REMOVE REAR DOOR SCUFF PLATE RH


    1. for Standard Body:

      Click here

    2. for Long Body:

      Click here

  10. REMOVE REAR SEAT SIDE GARNISH LH

    Click here

  11. REMOVE REAR SEAT SIDE GARNISH RH

    Click here

  12. REMOVE INNER ROOF SIDE GARNISH LH

    Click here

  13. REMOVE INNER ROOF SIDE GARNISH RH

    Click here

  14. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Click here

  15. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY

    Note

    Do not touch the cone of the speaker.


    1. Disconnect the connector.

    2. Remove the 4 bolts and stereo component speaker assembly.

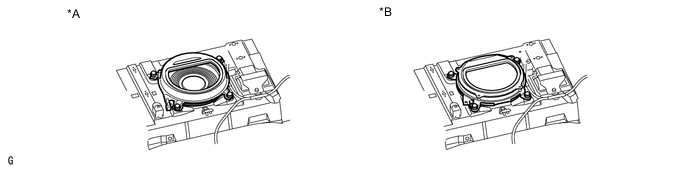

      A000YRLE05
      Text in Illustration
      *A for Standard *B for 19 Speakers
