REAR ACTIVE STABILIZER CONTROL ACTUATOR REMOVAL

PROCEDURE


  1. REMOVE REAR WHEEL

  2. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

    Click here

  3. DISCONNECT REAR ACTIVE STABILIZER CONTROL ACTUATOR CONNECTOR

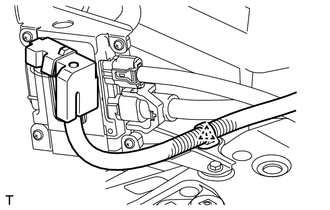

    A000YQU

    1. Detach the wire harness clamp.

    2. A000YILE02

      Disconnect the actuator connector labeled A.

    3. Disconnect the actuator connector labeled B.


      1. Release the lever's lock. (*1)

      2. Press the claw and move the lever in the direction of the arrow in the illustration. (*2)

      3. Disconnect the actuator connector. (*3)

        Note

        When disconnecting the actuator connector, do not apply excessive force to the wire harness.

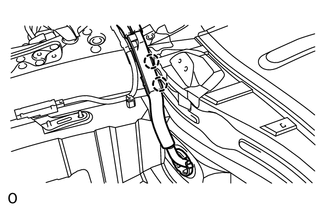

    4. A000ZQV

      Detach the 2 clamps, and disconnect the actuator wire harness from the body.

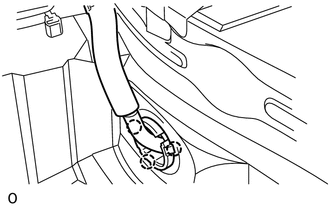

    5. A000UPQ

      Detach the 3 claws, and disconnect the wire harness grommet from the body.

  4. DISCONNECT ELECTRIC PARKING BRAKE ACTUATOR CONNECTOR

    Click here

  5. DISCONNECT WIRE HARNESS CLAMP

    Click here

  6. DISCONNECT ELECTRIC PARKING BRAKE ACTUATOR CAP

    Click here

  7. REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    Click here

  8. REMOVE REAR WHEEL HOUSE LINER LH

    Click here

  9. REMOVE SKID CONTROL SENSOR WIRE

    Click here

  10. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    Click here

  11. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

  12. REMOVE LOAD SENSING VALVE SENSOR BRACKET

    Click here

  13. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY LH

    Click here

  14. REMOVE REAR DISC BRAKE CALIPER ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  15. REMOVE REAR STABILIZER LINK ASSEMBLY LH

    A000ZPP

    1. Remove the nut and disconnect the stabilizer link from the stabilizer bar.

    2. A000XO5

      Remove the bolt, nut and stabilizer link from the rear No. 2 suspension arm.

  16. REMOVE REAR STABILIZER LINK ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  17. DISCONNECT PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY LH

    Click here

  18. DISCONNECT PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY RH

  19. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY


    1. A000XMEE02
      Text in Illustration
      *1 Attachment
      *1 Engine Lifter
      *a Attachment placement location

      Support the rear suspension member sub-assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.

      Note


      • Use the attachments to keep the rear suspension member sub-assembly level.

      • The rear suspension member sub-assembly is a heavy component. Make sure that it is supported securely.

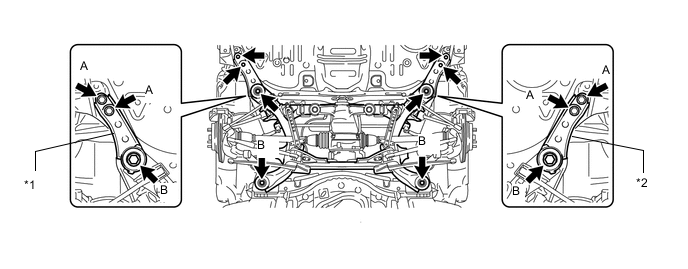

    2. Remove the 4 bolts labeled A.

      A000ZMEE02
      Text in Illustration
      *1 Suspension Member Stopper Lower RH *2 Suspension Member Stopper Lower LH
    3. Remove the 4 bolts labeled B and 2 suspension member stoppers.

    4. Slowly lower the rear suspension member subassembly.

      Note

      When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed on the vehicle.

  20. REMOVE REAR ACTIVE STABILIZER CONTROL ACTUATOR ASSEMBLY

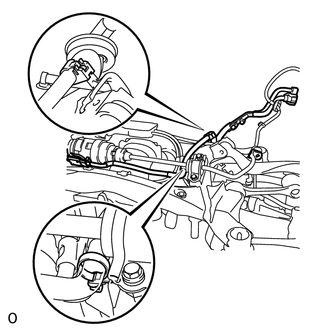

    1. A000W4C

      Disconnect the 2 claws, and remove the wire harness from the suspension member.

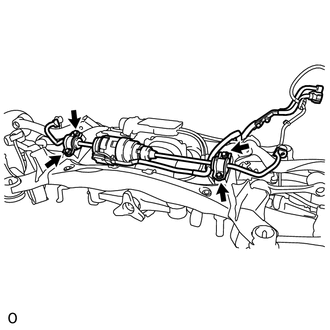

    2. A000WSP

      Remove the 4 bolts and active stabilizer from the suspension member.

  21. REMOVE REAR STABILIZER BUSH


    1. Remove the 2 bushes from the control actuator.
