CAUTION / NOTICE / HINT
Tech Tips
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart Click here.
PROCEDURE
TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
| *1 | No. 2 Suspension Toe Adjust Plate |
Temporarily install the No. 2 suspension arm with the No. 2 suspension toe adjust plate, rear suspension attachment and nut to the suspension member.
Install the stud of the suspension arm, and temporarily install the washer, nut and bolt to the axle carrier.
TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
Temporarily install the No. 1 suspension arm with the bolt and nut to the suspension member.
Install the stud of the suspension arm, and temporarily install a new nut to the axle carrier.
TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
Tighten the bolt and nut.
Tighten the bolt and nut.
TEMPORARILY CONNECT PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY LH
INSTALL REAR STABILIZER LINK ASSEMBLY LH
STABILIZE SUSPENSION

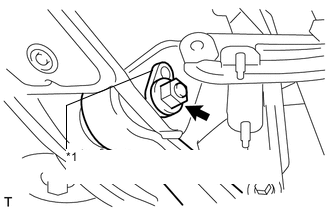

TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
| *1 | No. 2 Suspension Toe Adjust Plate |
Tighten the nut.
Tighten the nut.
TIGHTEN PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY LH
INSTALL SKID CONTROL SENSOR WIRE
INSTALL LOAD SENSING VALVE SENSOR BRACKET
INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR
INSTALL REAR WHEEL
CHECK SUSPENSION CONTROL SYSTEM
Check the suspension control system Click here.
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Inspect and adjust the rear wheel alignment Click here.
CHECK SPEED SENSOR SIGNAL
Check the speed sensor signal Click here.
ADJUST HEADLIGHT ASSEMBLY
Adjust the headlight Click here.
ADJUST OBJECT RECOGNITION CAMERA
Adjust the object recognition camera Click here.
