REAR SUSPENSION MEMBER INSTALLATION

PROCEDURE


  1. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING CUSHION (for Rear Side)

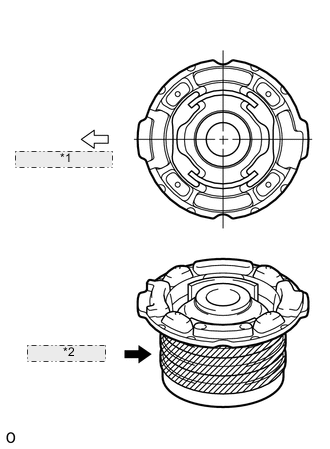

    A000TMVE01
    *1 Front of Vehicle
    *2 Apply Soapy Water

    1. Apply soapy water around the outside of a new rear suspension member body mounting cushion.

    2. Position the body mounting cushion as shown in the illustration, and install it to the rear suspension member. Front of Vehicle.

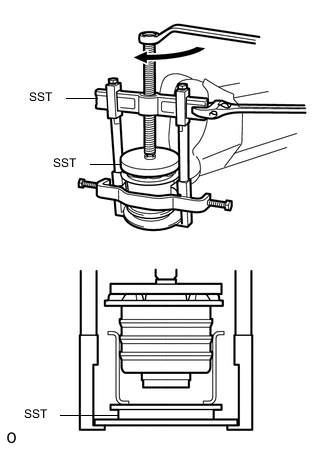

    3. A000WBCE01

      Using SST, press in the body mounting cushion.

      SST
      09316-12010
      09570-24011
      09950-40011   ( 09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04051, 09957-04010, 09958-04011 )
      09950-60020   ( 09951-00910 )

      Note

      Do not apply excessive force to the inner cylinder of the body mounting cushion. SST

  2. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING CUSHION LH (for Front Side)

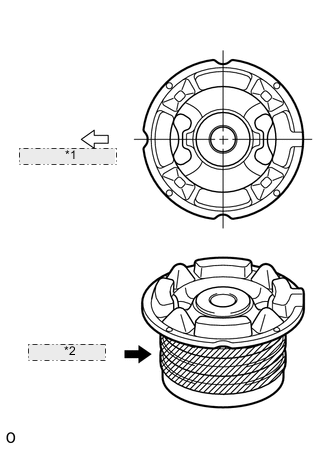

    A000TI1E01
    *1 Front of Vehicle
    *2 Apply Soapy Water

    1. Apply soapy water around the outside of a new rear suspension member body mounting cushion.

    2. Position the body mounting cushion as shown in the illustration, and install it to the rear suspension member.

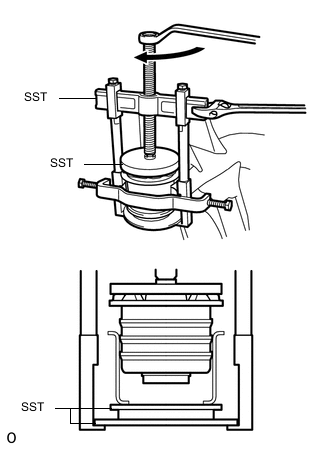

    3. A000X61E01

      Using SST, press in the body mounting cushion.

      SST
      09316-12010
      09570-24011
      09950-40011   ( 09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04051, 09957-04010, 09958-04011 )
      09950-60020   ( 09951-00910 )

      Note

      Do not apply excessive force to the inner cylinder of the body mounting cushion. SST

  3. INSTALL REAR SUSPENSION MEMBER BODY MOUNTING CUSHION RH (for Front Side)

    Tech Tips

    Use the same procedures described for the LH side.

  4. INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

    Click here

  5. INSTALL REAR NO. 2 DIFFERENTIAL MOUNT CUSHION

    Click here

  6. TEMPORARILY INSTALL REAR UPPER NO. 2 CONTROL ARM ASSEMBLY LH

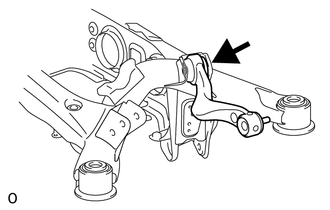

    A000UZ5

    1. Temporarily install the control arm with the bolt, nut and washer to the suspension member.

  7. TEMPORARILY INSTALL REAR UPPER NO. 2 CONTROL ARM ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

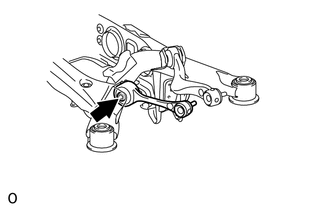

  8. TEMPORARILY INSTALL REAR UPPER NO. 1 CONTROL ARM ASSEMBLY LH

    A000V5H

    1. Temporarily install the control arm with the bolt, nut and washer to the suspension member.

  9. TEMPORARILY INSTALL REAR UPPER NO. 1 CONTROL ARM ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

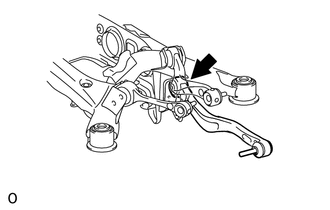

  10. TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY LH

    A000WQE

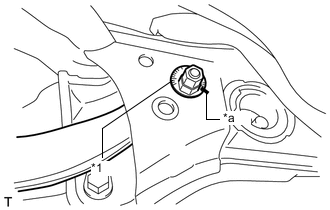

    1. A000VM2E07
      Text in Illustration
      *1 No. 2 Suspension Toe Adjust Plate
      *a Matchmark

      Insert the toe adjust cam from the rear of the vehicle and connect the toe control link. Then temporarily install the No. 2 suspension toe adjust plate with the nut.

      Note

      Align the matchmarks of the No. 2 suspension toe adjust plate and suspension member.

  11. TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  12. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

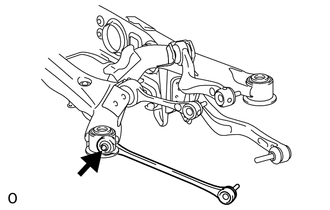

    A000U80

    1. Temporarily install the No. 1 suspension arm with the bolt and nut to the suspension member.

  13. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  14. INSTALL REAR SUSPENSION MEMBER DAMPER

    Click here

  15. INSTALL REAR ACTIVE STABILIZER CONTROL ACTUATOR ASSEMBLY (w/ Active Stabilizer)

    Click here

  16. INSTALL REAR STABILIZER BAR (w/o Active Stabilizer)

    Click here

  17. INSTALL PARKING BRAKE WITH BRACKET ACTUATOR ASSEMBLY

    Click here

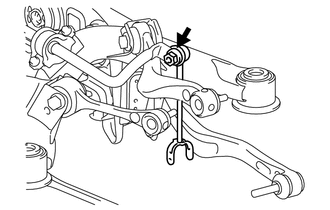

  18. INSTALL REAR STABILIZER LINK ASSEMBLY LH

    A000U61

    1. Install the stabilizer link with the nut to the stabilizer bar.

      Torque:
      89 N*m  { 908 kgf*cm, 66 ft.*lbf }

  19. INSTALL REAR STABILIZER LINK ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  20. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY


    1. A000XMEE02
      Text in Illustration
      *1 Attachment
      *2 Engine Lifter
      *a Attachment placement location

      Support the rear suspension member sub-assembly with an engine lifter using 4 attachments or equivalent tools.

      Note


      • Make sure to secure the rear suspension member sub-assembly to prevent it from dropping.

      • Use the attachments to keep the rear suspension member sub-assembly level.

      • The rear suspension member sub-assembly is a heavy component. Make sure that it is supported securely.

    2. Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and the body.

      Note

      When raising the rear suspension member subassembly, be careful not to damage the vehicle body or other components installed on the vehicle.

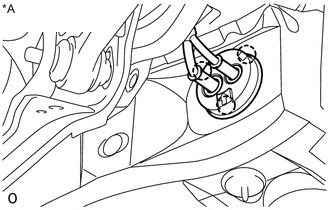

    3. A000UJYE03
      Text in Illustration
      *A w/ Active Stabilizer

      w/ Active Stabilizer:


      1. Attach the 3 claws to install the wire harness grommet of the active stabilizer control actuator.

        Tech Tips

        Install the grommet so that the arrow of the grommet is facing the top of the vehicle.

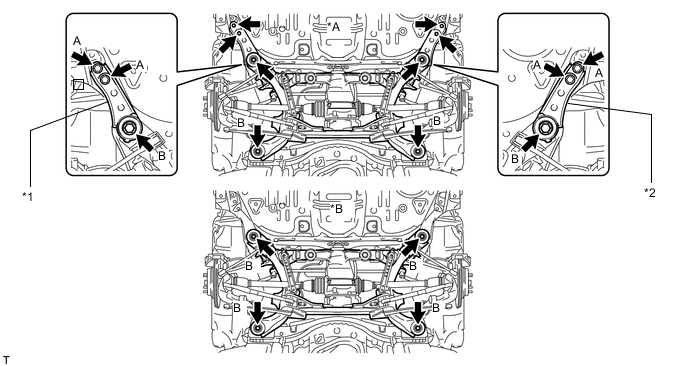

    4. for Sports Package:

      A000UAVE04
      Text in Illustration
      *A for Sports Package *B for Standard
      *1 Suspension Member Stopper Lower RH *2 Suspension Member Stopper Lower LH

      1. Install the 2 member stoppers with the 4 bolts labeled B, and install the 4 bolts labeled A.

        Torque:
        for bolt A
        19 N*m  { 194 kgf*cm, 14 ft.*lbf }
        for bolt B
        127 N*m  { 1295 kgf*cm, 94 ft.*lbf }

    5. for Standard:


      1. Install the 4 bolts labeled B.

        Torque:
        127 N*m  { 1295 kgf*cm, 94 ft.*lbf }

  21. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY WITH DRIVE SHAFT

    Click here

  22. INSTALL LOAD SENSING VALVE SENSOR BRACKET

    Click here

  23. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    Click here

  24. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  25. INSTALL PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

    Click here

  26. INSTALL REAR AXLE ASSEMBLY LH

    Click here

  27. INSTALL REAR AXLE ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  28. INSTALL ELECTRIC PARKING BRAKE ACTUATOR CAP

    Click here

  29. CONNECT ELECTRIC PARKING BRAKE ACTUATOR CONNECTOR

    Click here

  30. CONNECT REAR ACTIVE STABILIZER CONTROL ACTUATOR CONNECTOR (w/ Active Stabilizer)

    Click here

  31. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH

    Click here

  32. INSTALL REAR WHEEL HOUSE LINER LH

    Click here

  33. INSTALL REAR WHEEL HOUSE LINER RH

    Tech Tips

    Use the same procedures described for the LH side.

  34. STABILIZE SUSPENSION

    Click here

  35. TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    Click here

  36. TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  37. TIGHTEN PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY LH

    Click here

  38. TIGHTEN PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY RH

    Tech Tips

    Use the same procedures described for the LH side.

  39. INSPECT REAR UPPER NO. 1 CONTROL ARM BALL JOINT LOOSENESS

    Click here

  40. INSPECT REAR UPPER NO. 2 CONTROL ARM BALL JOINT LOOSENESS

    Click here

  41. INSPECT REAR NO. 1 SUSPENSION ARM BALL JOINT LOOSENESS

    Click here

  42. INSPECT TOE CONTROL LINK BALL JOINT LOOSENESS

    Click here

  43. INSTALL REAR WHEEL

    Torque:
    140 N*m  { 1428 kgf*cm, 103 ft.*lbf }

  44. CHECK SUSPENSION CONTROL SYSTEM

    Click here

  45. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Click here

  46. ADJUST HEADLIGHT ASSEMBLY

    Click here

  47. ADJUST OBJECT RECOGNITION CAMERA

    Click here
