FRONT SHOCK ABSORBER DISPOSAL

PROCEDURE


  1. DISPOSE OF PNEUMATIC CYLINDER WITH FRONT SHOCK ABSORBER ASSEMBLY LH

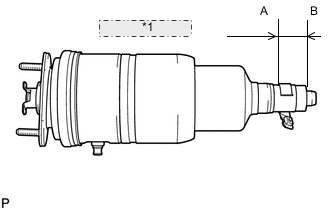

    1. A000XY3E01
      *1 30 mm (1.18 in.)

      Fully extend the front shock absorber rod.

    2. Using a drill, make a hole in the cylinder somewhere between A and B shown in the illustration to discharge the gas inside.

      CAUTION:

      Be careful as the cylinder is a high-pressure gas type which is at a higher pressure than normal shock absorbers. Also be careful with high temperatures as the cylinder's pressure becomes even higher.

      Note

      The gas is colorless, odorless and harmless.
