ABSORBER CONTROL ACTUATOR(for Rear Side) INSTALLATION

PROCEDURE


  1. INSTALL ABSORBER CONTROL ACTUATOR


    1. A000WBZE01

      Check that the control rod of the rear shock absorber is in the position shown in the illustration.

      Note

      If the control rod is not in the position shown in the illustration, turn the control rod to adjust the position and install the absorber control actuator.

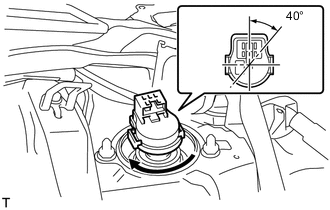

    2. A000YSCE04

      Install the absorber control actuator to the actuator support bracket.

    3. Turn the actuator clockwise approximately 40° until a click is felt.

      Note


      • Before turning the actuator, make sure to check that the actuator output shaft and control rod are securely connected.

      • Do not turn the actuator more than 40°.

      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.

  2. INSTALL REAR SHOCK ABSORBER CAP LH


    1. Connect the connector to the absorber control actuator.

    2. A000UKX

      Install the absorber cap with the 3 nuts.

      Torque:
      14 N*m  { 143 kgf*cm, 10 ft.*lbf }

    3. Connect the wire harness to the absorber cap.

  3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
