ABSORBER CONTROL ACTUATOR(for Rear Side) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedures for the LH side and RH side.

  • The procedures listed below are for the LH side.

PROCEDURE


  1. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Click here

  2. REMOVE REAR SHOCK ABSORBER CAP LH

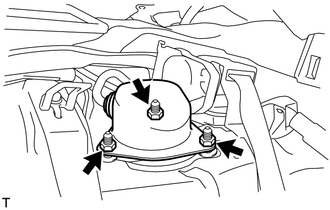

    1. A000UKX

      Remove the 3 nuts and shock absorber cap.

    2. Disconnect the connector from the absorber control actuator.

    3. Disconnect the absorber cap from the wire harness.

  3. REMOVE ABSORBER CONTROL ACTUATOR

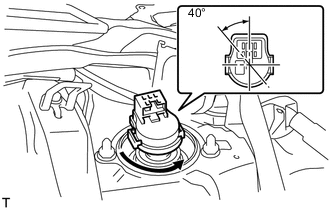

    1. A000W36E01

      Turn the absorber control actuator counterclockwise approximately 40° to remove it.

      Note


      • Do not turn the actuator more than 40°.

      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
