ABSORBER CONTROL ACTUATOR(for Front Side) INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedures for the RH side and LH side.

  • The procedures listed below are for the LH side.

PROCEDURE


  1. INSTALL ABSORBER CONTROL ACTUATOR


    1. A000WBZE01

      Check that the control rod of the front shock absorber is in the position shown in the illustration.

      If the control rod is not in the position shown in the illustration, turn the control rod to adjust the position and install the absorber control actuator.

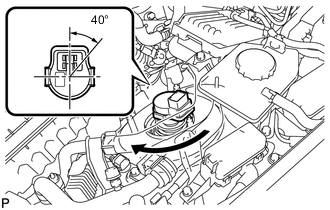

    2. A000W2ZE04

      Install the absorber control actuator to the actuator support bracket.

    3. Turn the actuator clockwise 40° until a click is felt.

      Note


      • Before turning the actuator, make sure to check that the actuator output shaft and control rod are securely connected.

      • Do not turn the actuator more than 40°.

      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.

  2. INSTALL FRONT SHOCK ABSORBER CAP LH


    1. Connect the connector to the absorber control actuator.

    2. A000U2V

      Install the absorber cap with the 3 nuts.

      Torque:
      20 N*m  { 202 kgf*cm, 15 ft.*lbf }

    3. Connect the wire harness to the absorber cap.

  3. INSTALL ENGINE ROOM SIDE COVER LH
