ABSORBER CONTROL ACTUATOR(for Front Side) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedures for the RH side and LH side.

  • The procedures listed below are for the LH side.

PROCEDURE


  1. REMOVE ENGINE ROOM SIDE COVER LH

    Click here

  2. REMOVE FRONT SHOCK ABSORBER CAP LH

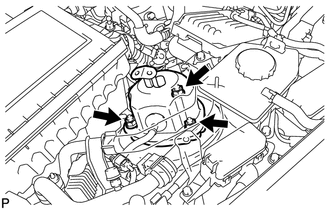

    1. A000U2V

      Remove the 3 nuts and shock absorber cap.

    2. Disconnect the connector from the absorber control actuator.

    3. Disconnect the absorber cap from the wire harness.

  3. REMOVE ABSORBER CONTROL ACTUATOR

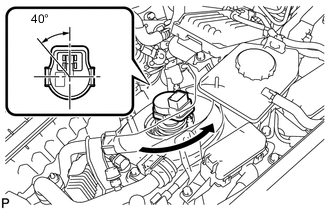

    1. A000VTBE03

      Turn the absorber control actuator counterclockwise 40° to remove it from the front pneumatic cylinder.

      Note


      • Do not turn the actuator more than 40°.

      • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.
