FRONT ACCELERATION SENSOR(for LHD) INSTALLATION

PROCEDURE


  1. INSTALL ACCELERATION SENSOR ASSEMBLY

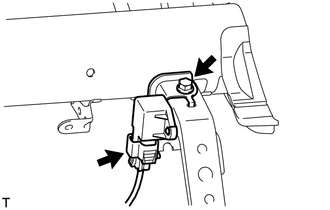

    1. A000WM7

      Install the acceleration sensor with bracket to the instrument panel reinforcement with the bolt.

      Torque:
      8.5 N*m  { 87 kgf*cm, 75 in.*lbf }

      Note


      • Avoid any impact to the acceleration sensor.

      • Do not drop the acceleration sensor. If it is dropped, replace it with a new one.

    2. Connect the sensor connector.

  2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY

    Click here
