HEIGHT CONTROL SENSOR(for Rear LH) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Be sure to read the "PRECAUTION" thoroughly before servicing Click here.

Tech Tips


  • Use the same procedures for the RH side and LH side.

  • The procedures listed below are for the LH side.

PROCEDURE


  1. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH


    1. Disconnect the connector.

    2. A001069E01

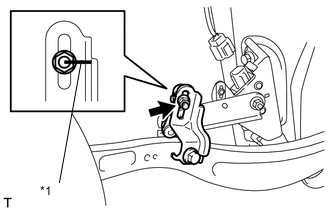

      *1 Matchmark

      Place matchmarks on the height control sensor link and bracket.

    3. Remove the nut and disconnect the height control sensor link from the bracket.

    4. A000TVG

      Remove the 2 bolts and height control sensor from the rear suspension member.

      Note

      Do not drop the height control sensor. If it is dropped, replace it with a new one.

  2. REMOVE LOAD SENSING VALVE SENSOR BRACKET LH


    1. Remove the bolt and bracket from the toe control link.
