MILLIMETER WAVE RADAR SENSOR INSTALLATION

PROCEDURE

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

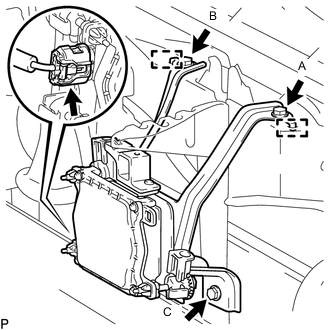

   1. Connect the connector.

   2. Attach the 2 guides and install the millimeter wave radar sensor assembly with the 3 bolts in alphabetical order.

      Torque:

      5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

2. INSTALL FRONT BUMPER ENERGY ABSORBER

   Click here

3. INSTALL FRONT BUMPER ASSEMBLY

   Click here

4. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY

   Click here
