DRIVING SUPPORT ECU REMOVAL

PROCEDURE


  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for LHD)

    Click here

  2. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for RHD)

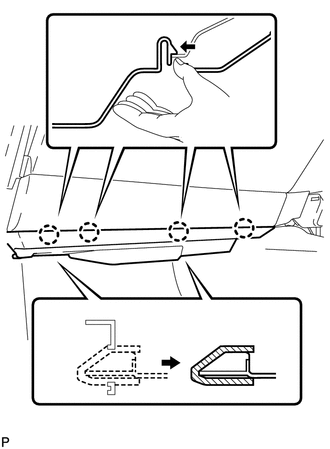

    1. A000X4E

      Detach the 4 claws and remove the No. 2 instrument panel under cover sub-assembly.

    2. Disconnect the connector.

  3. REMOVE FRONT DOOR SCUFF PLATE LH

    Click here

  4. REMOVE COWL SIDE TRIM BOARD LH

    Click here

  5. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY (for LHD)

    Click here

  6. REMOVE NO. 3 DASH PANEL INSULATOR PAD (for LHD)

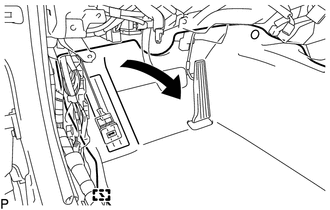

    1. A000V2K

      Detach the clamp.

    2. Partially remove the floor carpet.

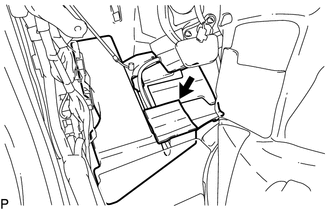

    3. A000X51

      Remove the No. 1 cooling unit packing and disconnect the No. 2 cooler unit drain hose.

    4. Remove the No. 3 dash panel insulator pad.

  7. REMOVE DASH PANEL EXTENSION LH

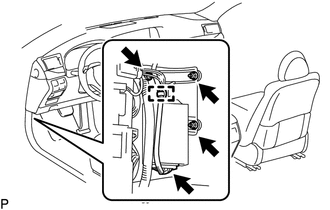

    A000VSV

    1. for RHD:

      Partially remove the floor carpet.

    2. Using a clip remover, detach the wire harness clamp.

    3. Remove the 2 nuts and bolt.

    4. Disconnect the connector and remove the dash panel extension LH and driving support ECU assembly as a unit.

  8. REMOVE DRIVING SUPPORT ECU ASSEMBLY

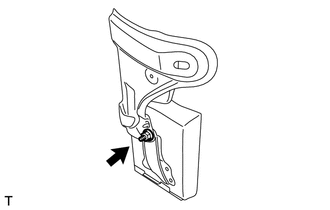

    A000TG3

    1. Remove the nut and driving support ECU assembly.

      Note


      • Do not drop or subject the driving support ECU assembly to strong shocks.

      • During the removal and installation, do not remove the drip-proof cover.
