CRUISE CONTROL MAIN SWITCH INSTALLATION

PROCEDURE

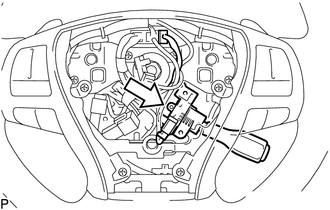

1. INSTALL CRUISE CONTROL MAIN SWITCH ASSEMBLY




   1.

      Connect the connector and install the cruise control main switch assembly.

   2. Install the 2 screws.

2. INSTALL STEERING PAD

   Click here

3. INSTALL LOWER NO. 3 STEERING WHEEL COVER

   Click here

4. INSTALL LOWER NO. 2 STEERING WHEEL COVER

   Click here

5. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

6. INSTALL BATTERY SERVICE HOLE COVER LH

   Click here

7. INSTALL DECK TRIM SIDE BOARD LH (w/o Spare Tire)

   Click here

8. INSTALL DECK BOARD ASSEMBLY (w/o Spare Tire)

   Click here

9. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Spare Tire)

   Click here

10. CHECK SRS WARNING LIGHT

    Click here
