CRUISE CONTROL MAIN SWITCH REMOVAL

PROCEDURE

1. PRECAUTION

   Note

   After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work Click here.

2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY (w/ Spare Tire)

   Click here

3. REMOVE DECK BOARD ASSEMBLY (w/o Spare Tire)

   Click here

4. REMOVE DECK TRIM SIDE BOARD LH (w/o Spare Tire)

   Click here

5. REMOVE BATTERY SERVICE HOLE COVER LH (w/o Spare Tire)

   Click here

6. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

   CAUTION:

   Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

7. REMOVE LOWER NO. 3 STEERING WHEEL COVER

   Click here

8. REMOVE LOWER NO. 2 STEERING WHEEL COVER

   Click here

9. REMOVE STEERING PAD

   Click here

10. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY




    1.

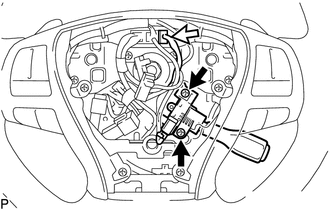

       Remove the 2 screws.

    2.

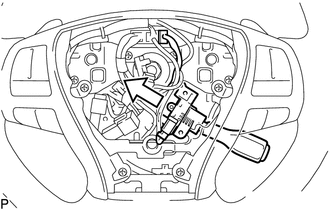

       Disconnect the connector and remove the cruise control main switch assembly.
