CIGARETTE LIGHTER(for Center Console Side) INSTALLATION

PROCEDURE


  1. INSTALL CIGARETTE LIGHTER HOLE BEZEL (w/o Rear Seat Entertainment System)


    1. Attach the 2 claws to install the cigarette lighter hole bezel to the rear cigarette lighter bezel stay.

  2. INSTALL REAR CIGARETTE LIGHTER BEZEL STAY


    1. w/o Rear Entertainment System:

      Attach the 2 claws to install the rear cigarette lighter bezel stay together with the cigarette lighter hole bezel to the rear console end panel sub-assembly.

    2. w/ Disc Player:

      Attach the 2 claws to install the rear cigarette lighter bezel stay to the rear console end panel.

  3. INSTALL REAR CIGARETTE LIGHTER ASSEMBLY

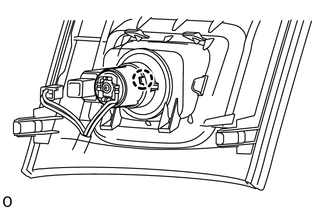

    1. A000Y69

      w/o Rear Entertainment System:

      Attach the claw to install the socket cap.

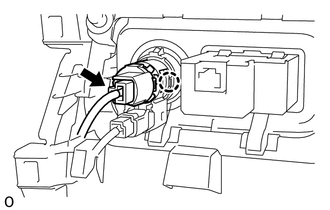

    2. A000UY8

      w/ Disc Player:


      1. Attach the claw to install the socket cap.

      2. Connect the connector.

    3. w/o Rear Entertainment System:

      When replacing the cigarette lighter assembly:


      1. Install a new wire harness clamp as shown in the illustration.

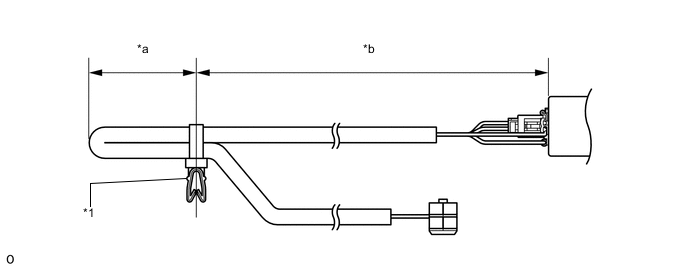

        A000ZCEE05
        Text in Illustration
        *1 Wire Harness Clamp - -
        *a 30 to 40 mm (1.18 to 1.57 in.) *b 85 to 95 mm (3.35 to 3.74 in.)
      2. A000XGXE02
        Text in Illustration
        *a 1 to 3 mm (0.0393 to 0.118 in.)
        *b Cut
        *c Correct
        *d Incorrect

        Cut off the wire harness clamp as shown in the illustration.

    4. Install the cigarette lighter knob and element assembly.

  4. INSTALL REAR CIGARETTE LIGHTER COVER


    1. w/o Rear Entertainment System:


      1. Attach the 2 claws to install the rear cigarette lighter cover.

      2. Connect the connector and attach the wire harness clamp.

    2. w/ Disc Player:


      1. Attach the 2 claws to install the rear cigarette lighter cover.

      2. A000TEOE01
        Text in Illustration
        *1 Cable Tie

        Connect the connector.

      3. Install a new cable tie as shown in the illustration.

      4. A000XGXE02
        Text in Illustration
        *a 1 to 3 mm (0.0393 to 0.118 in.)
        *b Cut
        *c Correct
        *d Incorrect

        Cut off the cable tie as shown in the illustration.

  5. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY (w/o Rear Seat Entertainment System)

    Click here

  6. INSTALL REAR CONSOLE END PANEL (w/ Disc Player)

    Click here

  7. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY (w/ Disc Player)

    Click here

  8. INSTALL REAR NO. 1 CONSOLE END PANEL GARNISH (w/ Disc Player)

    Click here

  9. INSTALL REAR NO. 2 CONSOLE END PANEL GARNISH (w/ Disc Player)

    Click here

  10. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (w/ Disc Player)

    Click here
