CIGARETTE LIGHTER(for Center Console Side) REMOVAL

PROCEDURE


  1. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY (w/o Rear Seat Entertainment System)

    Click here

  2. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (w/ Disc Player)

    Click here

  3. REMOVE REAR NO. 1 CONSOLE END PANEL GARNISH (w/ Disc Player)

    Click here

  4. REMOVE REAR NO. 2 CONSOLE END PANEL GARNISH (w/ Disc Player)

    Click here

  5. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY (w/ Disc Player)

    Click here

  6. REMOVE REAR CONSOLE END PANEL (w/ Disc Player)

    Click here

  7. REMOVE REAR CIGARETTE LIGHTER COVER

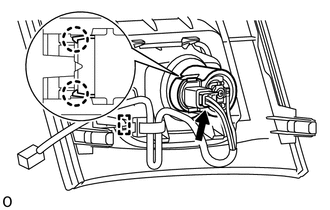

    1. A000WKD

      w/o Rear Seat Entertainment System:


      1. Disconnect the connector and detach the wire harness clamp.

      2. Detach the 2 claws and remove the rear cigarette lighter cover.

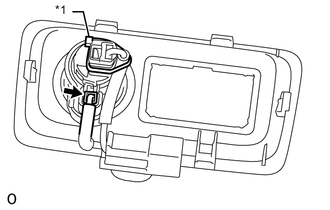

    2. A000TEOE01

      w/ Disc Player:


      1. Cut off the cable tie.

        Text in Illustration
        *1 Cable Tie

      2. Disconnect the connector.

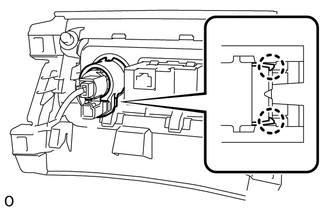

      3. A000ZMW

        Detach the 2 claws and remove the rear cigarette lighter cover.

  8. REMOVE REAR CIGARETTE LIGHTER ASSEMBLY


    1. Remove the cigarette lighter knob and element assembly.

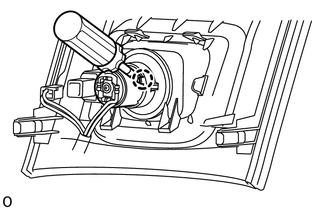

    2. A000Y9M

      w/o Rear Seat Entertainment System:

      Using a screwdriver, detach the claw and remove the socket cap.

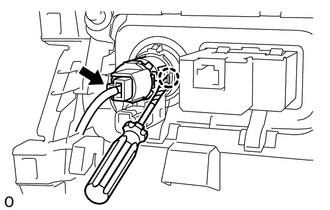

    3. A000XFC

      w/ Disc Player:


      1. Disconnect the connector.

      2. Using a screwdriver, detach the claw and remove the socket cap.

  9. REMOVE REAR CIGARETTE LIGHTER BEZEL STAY

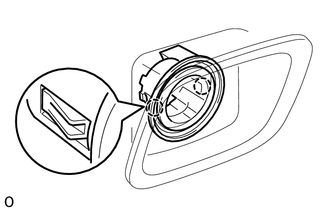

    1. A000WJW

      w/o Rear Seat Entertainment System:

      Detach the 2 claws and remove the rear cigarette lighter bezel stay together with the cigarette lighter hole bezel from the rear console end panel sub-assembly.

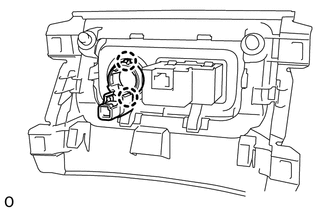

    2. A000WET

      w/ Disc Player:

      Detach the 2 claws and remove the rear cigarette lighter bezel stay from the rear console end panel.

  10. REMOVE CIGARETTE LIGHTER HOLE BEZEL (w/o Rear Seat Entertainment System)

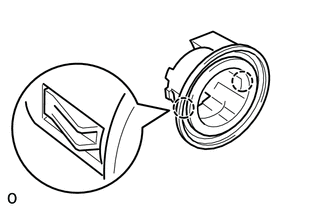

    A000YHD

    1. Detach the 2 claws and remove the cigarette lighter hole bezel from the cigarette lighter hole bezel stay.
