DYNAMIC RADAR CRUISE CONTROL SYSTEM PARTS LOCATION

ILLUSTRATION

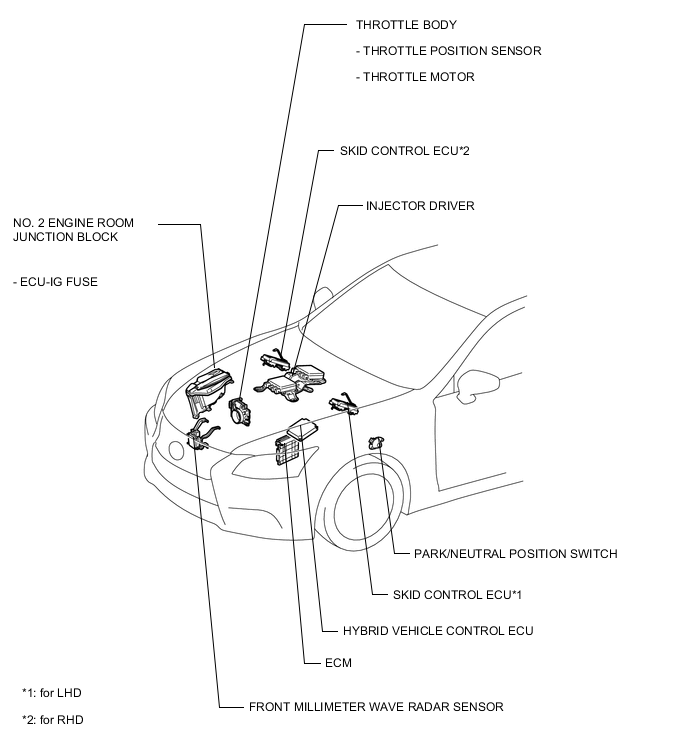

A000WXXE02

ILLUSTRATION

A000ZT2E01


*1	FRONT SPEED SENSOR RH
*2	REAR SPEED SENSOR RH
*3	REAR SPEED SENSOR LH
*4	FRONT SPEED SENSOR LH

ILLUSTRATION

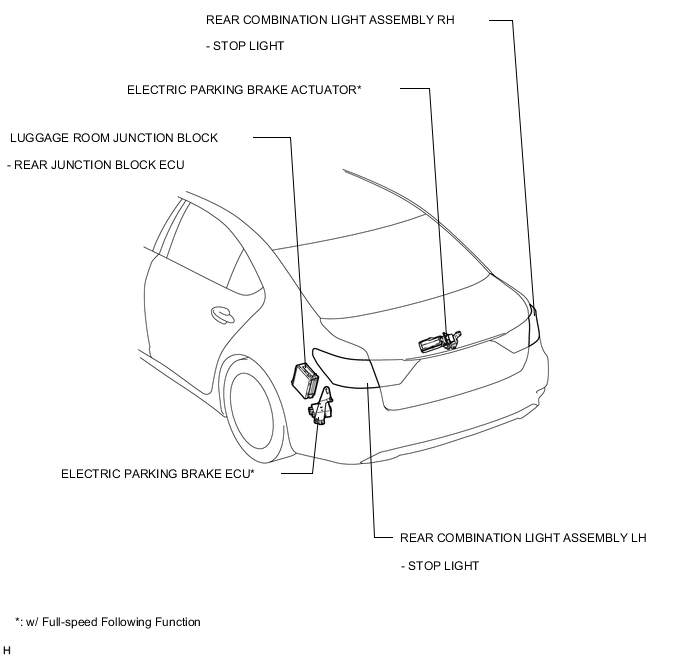

A00103HE02

ILLUSTRATION

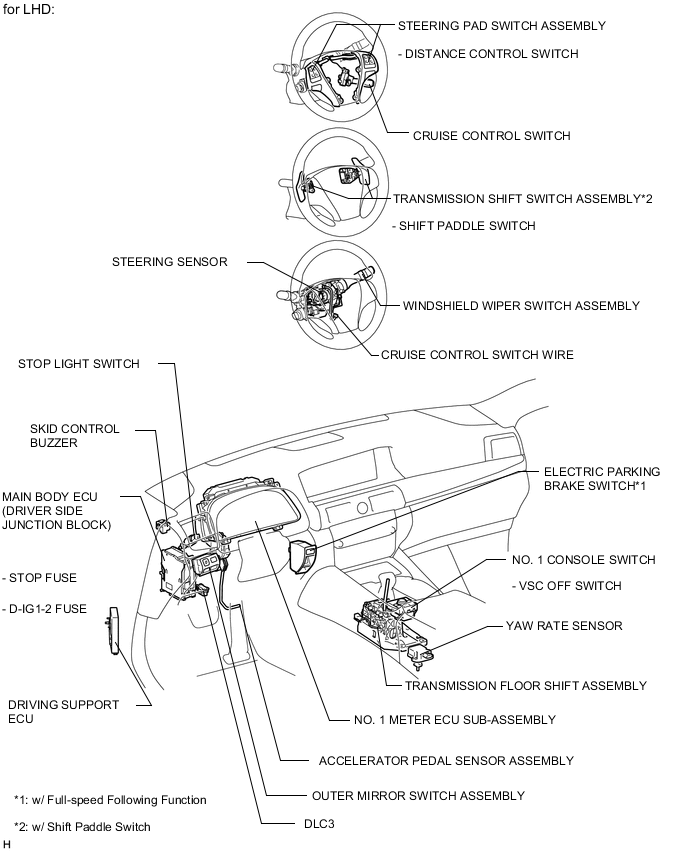

A000XUKE05

ILLUSTRATION

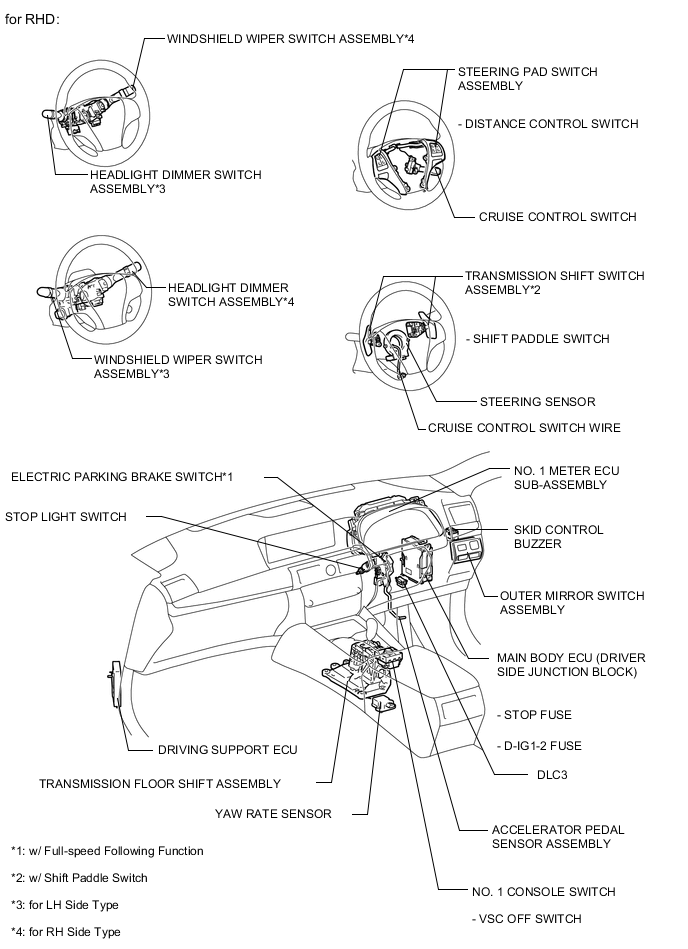

A000Y5JE04
