CRUISE CONTROL SYSTEM ROAD TEST

Tech Tips

Check that the cancellation conditions are not fulfilled.


  1. INSPECT SET SWITCH

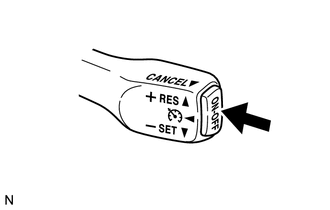

    1. A000VUI

      Push the cruise control switch ON.

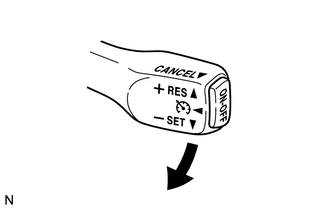

    2. A000U2K

      Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. Press the cruise control switch to -/SET.

    4. After releasing the switch, check that the vehicle cruises at the desired speed.

  2. INSPECT "+" SWITCH


    1. A000VUI

      Push the cruise control switch ON.

    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. A000U2K

      Press the cruise control switch to -/SET.

    4. Check that the vehicle speed increases while the cruise control switch in pulled up to +/RES, and that the vehicle cruises at the set speed when the cruise control switch is released.

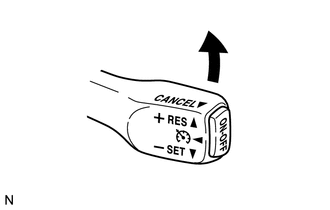

    5. A000ZTA

      Momentarily press the cruise control switch upward to +/RES and then immediately release it. Check that the vehicle speed increases by about 1.6 km/h (1 mph) (Tap-up function).

  3. INSPECT "-" SWITCH


    1. A000VUI

      Push the cruise control switch ON.

    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. A000U2K

      Press the cruise control switch to -/SET.

    4. Check that the vehicle speed decreases while the cruise control switch in pushed down to -/SET, and that the vehicle cruises at the set speed when the cruise control switch is released.

    5. Momentarily press the cruise control switch downward to -/SET, and then immediately release it. Check that the vehicle speed decreases by about 1.6 km/h (1 mph) (Tap-down function).

  4. INSPECT CANCEL SWITCH


    1. A000VUI

      Push the cruise control switch ON.

    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. A000U2K

      Press the cruise control switch to -/SET.

    4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.


      • Depress the brake pedal

      • Pushing the cruise control switch OFF

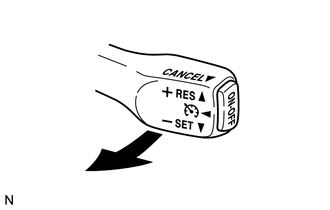

      • A000WGR

        Turn the cruise control switch to CANCEL

      • Moving the shift lever to any position except D or S (8th, 7th, 6th, 5th or 4th gear)

      • w/ Shift Paddle Switch:

        The transmission is changed from 4th gear to 3rd, 2nd or 1st gear with the shift paddle switch while the shift lever is in D or M.

  5. INSPECT RES (RESUME) SWITCH


    1. A000VUI

      Push the cruise control switch ON.

    2. Drive the vehicle at a desired speed (between approximately 40 km/h and 200 km/h [25 mph and 125 mph]).

    3. A000U2K

      Press the cruise control switch to -/SET.

    4. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.


      • Depress the brake pedal

      • Pushing the cruise control switch OFF

      • Moving the shift lever to any position except D or S (8th, 7th, 6th, 5th or 4th gear)

      • w/ Shift Paddle Switch

        The transmission is changed from 4th gear to 3rd, 2nd or 1st gear with the shift paddle switch while the shift lever is in D or M.

    5. A000ZTA

      After the cruise control switch is pulled up to +/RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed before the cancellation.
