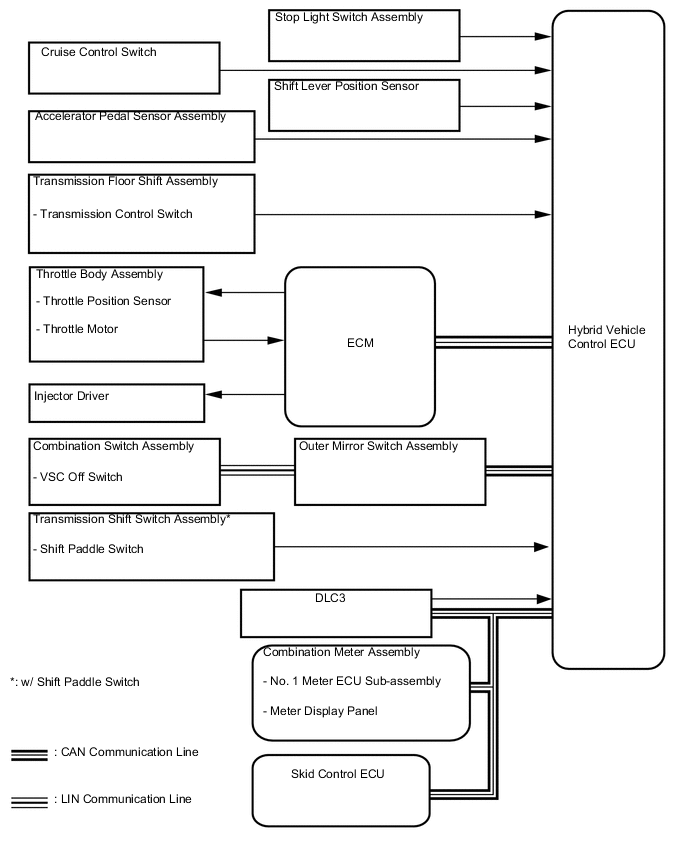

CRUISE CONTROL SYSTEM SYSTEM DIAGRAM
| Sender ECU | Receiver ECU | Signal | Line |
|---|---|---|---|
| Hybrid vehicle control ECU | No. 1 meter ECU sub-assembly | Cruise control indicator light signal | CAN |
| Hybrid vehicle control ECU | ECM | Throttle motor operation signal | CAN |
| Skid control ECU | Hybrid vehicle control ECU | Vehicle speed sensor signal | CAN |
| ECM | Hybrid vehicle control ECU | Throttle position signal | CAN |
