CRUISE CONTROL SYSTEM PARTS LOCATION

ILLUSTRATION

A000YMSE02

ILLUSTRATION

A000ZT2E01


*1	FRONT SPEED SENSOR RH
*2	REAR SPEED SENSOR RH
*3	REAR SPEED SENSOR LH
*4	FRONT SPEED SENSOR LH

ILLUSTRATION

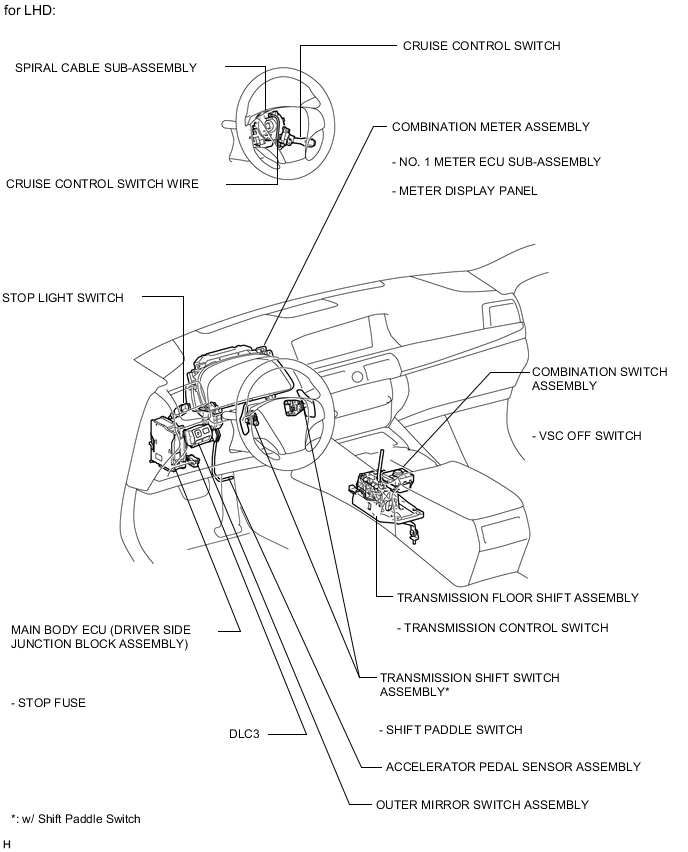

A000Y50E06

ILLUSTRATION

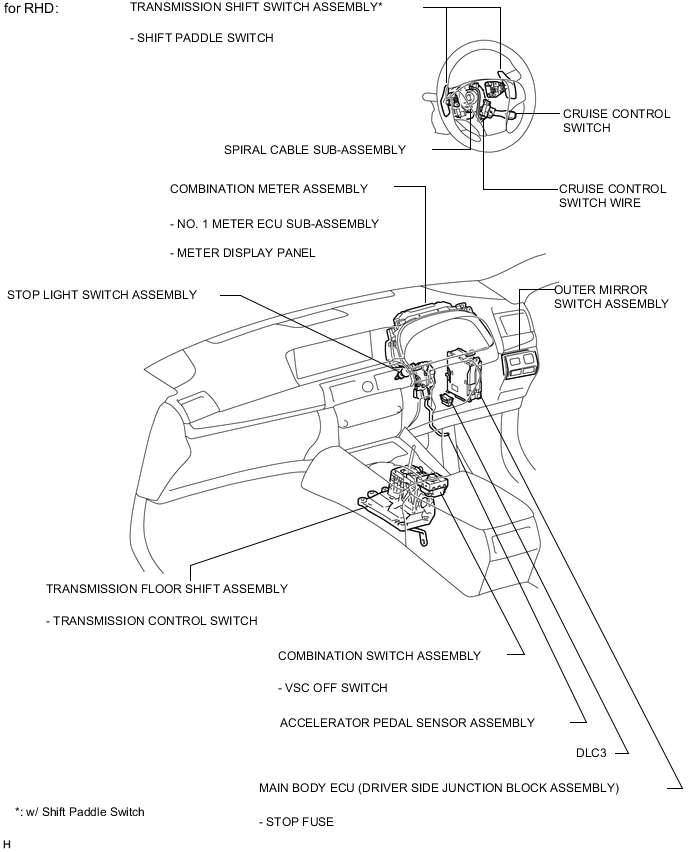

A000U7TE05
